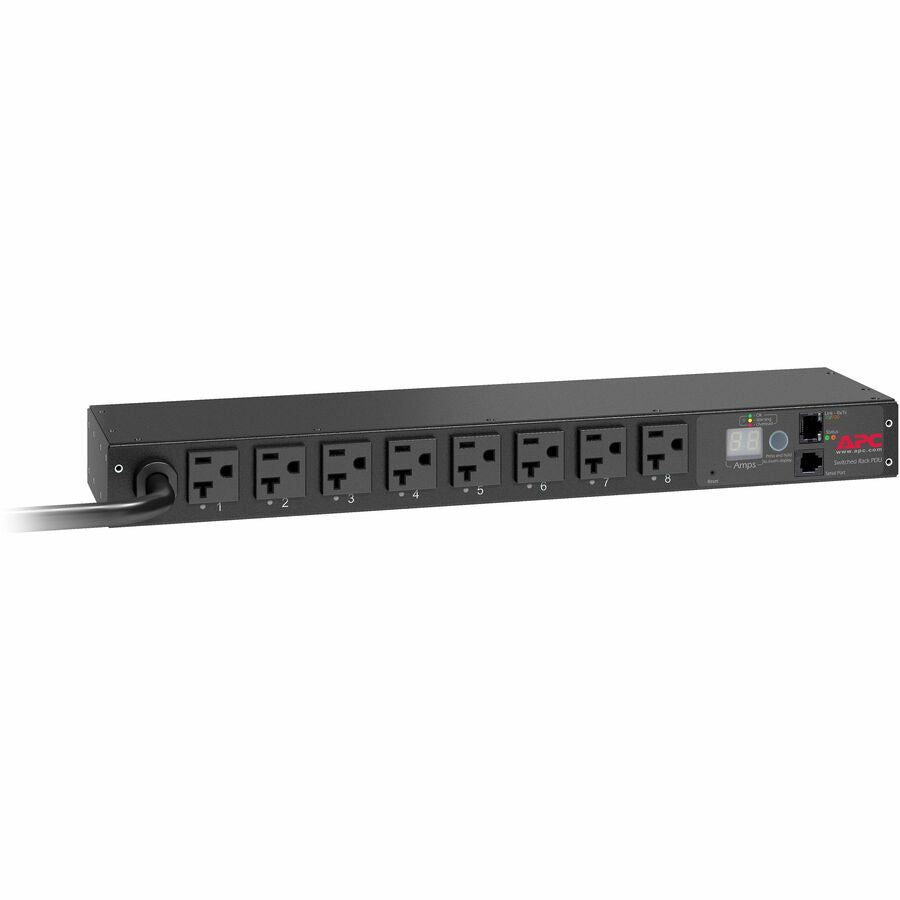

APC by Schneider Electric Rack PDU, Switched, 1U, 20A, 120V, (8)5-20

APC by Schneider Electric Rack PDU, Switched, 1U, 20A, 120V, (8)5-20

It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 120V. It features 8 NEMA 5-20R outlets and a NEMA L5-20P input connection. The PDU has a 1U form factor and a cord length of 12 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.

More from the Manufacturer

• With PDUs decisions for load balancing and minimizing extra cost can be managed


• Remotely control individual outlets for rebooting of locked equipment with switched PDUs

Product Type: PDU
Additional Warranty Information: 2 years repair or replace
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Cord Length: 12 ft (3.66 m)
Rack Height: 1U
Brand Name: APC by Schneider Electric
Manufacturer: Schneider Electric SA
Product Name: Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Mount Type: Rack-mountable
Manufacturer Part Number: AP7901B
Manufacturer Website Address: http://www.schneider-electric.com
Package Contents:

Rack PDU, Switched, 1U, 20A, 120V, (8)5-20

Cord retention bracket(s)

Horizontal mounting brackets

Installation guide

User manual

Limited Warranty: 2 Year
Weight (Approximate): 5 lb (2267.96 g)
Mounting Orientation: Horizontal
Placement: Rear
