TRIPP LITE QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M), 1 m (3 ft)
http://www.eaton.com/EatonCom/Markets/NorthAmerica

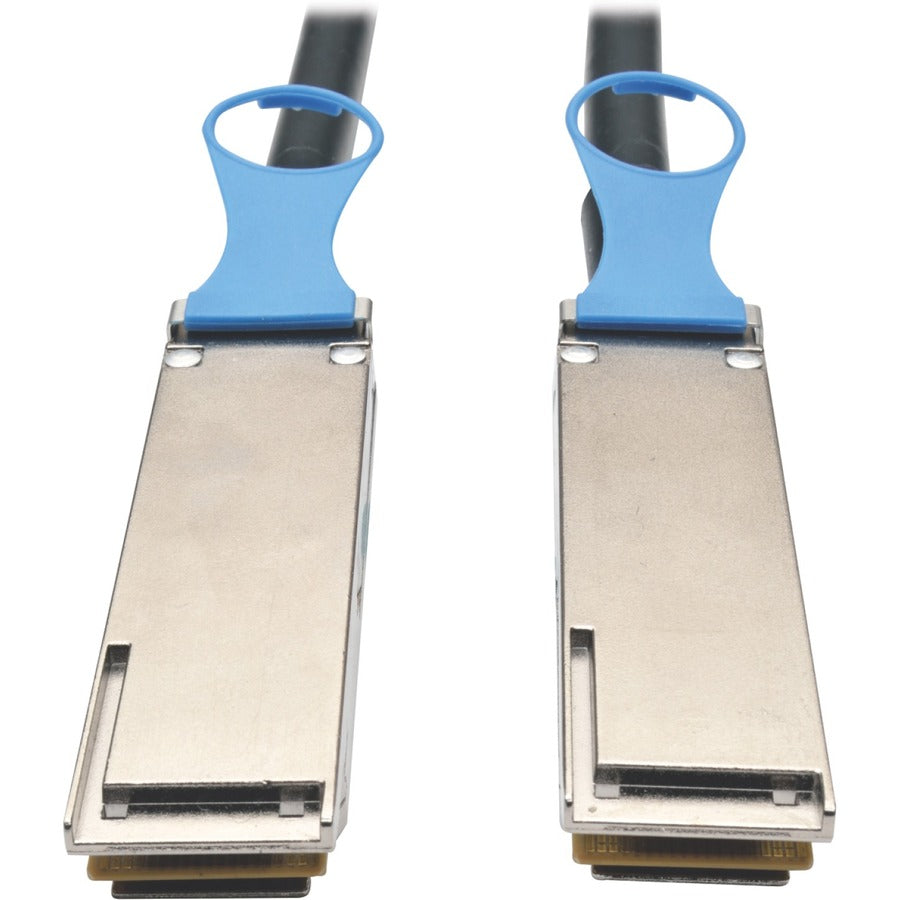

Tripp Lite by Eaton QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M), 1 m (3 ft)
The N282-01M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
This one-meter copper cable integrates a 100G Ethernet-optimized (100 GbE) 38-position "board-as-connector" design with zinc die-cast male QSFP+ connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 100-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand.
Flexible 26 AWG conductors maintain a smooth high-frequency response. The N282-01M-28-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.
- Pull-tab ejectors for quick, easy connections
- Multi-platform support for 128G Fibre Channel and EDR InfiniBand
- Meets or exceeds 100GBASE-CR4 standards
- Complies with MSA SFF-8665 specifications
- Supports serial data rates up to 100 Gbps
Product Type: Network Cable
Environmentally Friendly: Yes
Product Color: Black
Color Family: Black
Country Of Origin: China
Brand Name: Tripp Lite by Eaton
Manufacturer: Eaton Corporation
Product Model: N282-01M-28-BK
Product Name: QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M), 1 m (3 ft)
Manufacturer Part Number: N282-01M-28-BK
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Limited Warranty: Lifetime
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
-
Country of Origin
-
Environmentally Friendly
Terms: Lifetime
