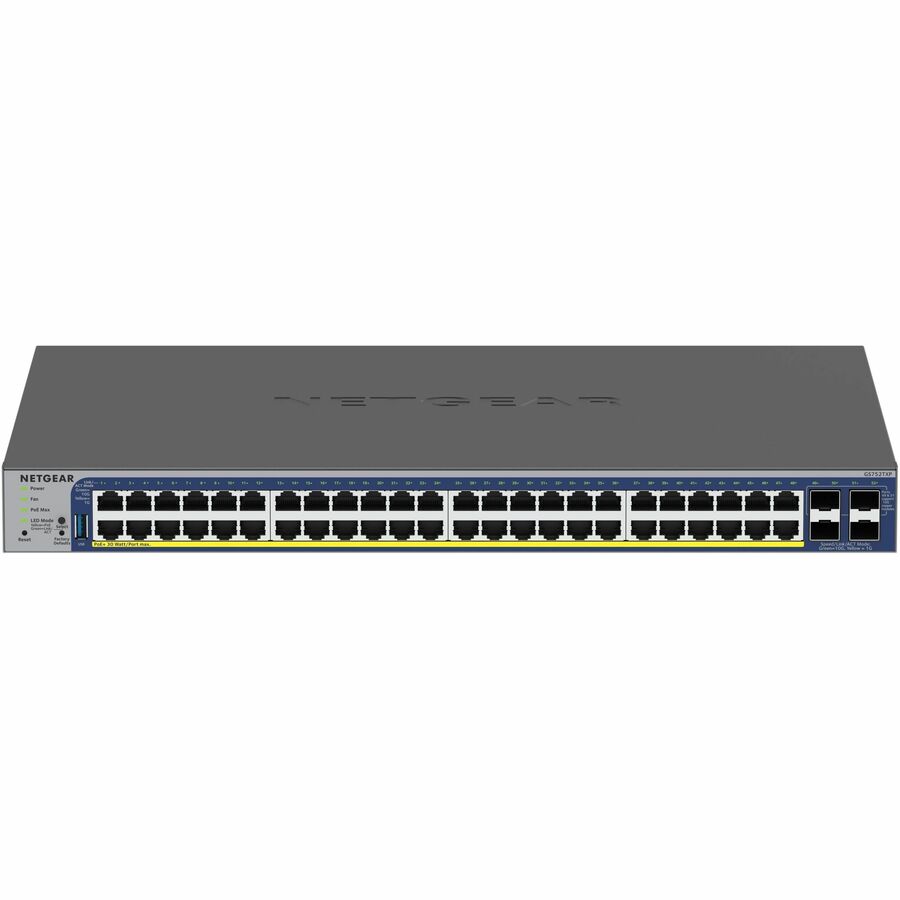

Netgear Gigabit PoE+ Smart Switches with 4 Dedicated 10G SFP+ Ports

Netgear Gigabit PoE+ Smart Switches with 4 Dedicated 10G SFP+ Ports

All ports PoE+ with up to 380W PoE budget and Remote/Cloud Management option - Select your new network engine!

As a leading provider of network equipment for businesses, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business' needs, whether in the hospitality, catering, education or retail domains. The GS728TXPv3 and GS752TXPv3 Gigabit Ethernet Switches with PoE+ and 4 SFP+ Ports join the NETGEAR Smart switches with Cloud family, adding full 24 and 48 port PoE+ support for organizations that deploy high-density PoE+ devices and require a powerful interconnect link between access and aggregation. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 190W over 24-port, or 380W over 48-port providing more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TXPv3 supports quiet rack mounting operation with a maximum of 26.80dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, GS752TXPv3 is rated at 36.6dBA.

Highlights

The NETGEAR PoE+ Gigabit Smart switches with Remote/Cloud Management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoEbased VoIP phones, IP cameras, videoover-IP endpoints and Wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.

Key features include:

• 24-port and 48-port PoE+ with 190W and 380W total PoE budget


• 4 Dedicated 10G SFP+ ports, not only providing high-speed fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for the network


• Quiet rack mounting operation with 26.80dBA to 36.6dBA at 25°C (77°F) ambient


• Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing


• Advanced VLAN and Private VLAN support for better network segmentation


• L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication


• Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, LED lighting, secure access door locks, IoT devices...)


• Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based


• Auto "denial-of-service" (DoS) prevention


• IGMP Snooping and Querier for multicast optimization


• Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment


• Dynamic ARP for increased security targeting a class of Man in the Middle attack


• Rate limiting and priority queuing for better bandwidth allocation


• Port mirroring for network monitoring


• Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings


• Cable test to troubleshoot connection issues


• SNMP v1, v2c, v3 and RMON remote monitoring

Build a future-proof network with NETGEAR:

• Solid performance with non-blocking architecture, 16K MAC addresses, 256 VLANs, 100 shared (ingress) ACLs and 512 Multicast groups.

• Cascade to other network devices through the uplink port to expand your local area network


• Quickly and easily set up a wired network with 48 networking ports


• Can work as layer 3 routing for scalable network design


• Management capability provides control over setup and configuration of your network


• Gigabit Ethernet port for ultra-fast network speeds


• Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components

Product Type: Ethernet Switch
Brand Name: Netgear
Form Factor: Table Top
Manufacturer: Netgear, Inc
Product Model: GS752TXPv3
Product Name: Gigabit PoE+ Smart Switches with 4 Dedicated 10G SFP+ Ports
Manufacturer Part Number: GS752TXP-300NAS
Manufacturer Website Address: http://www.netgear.com
Package Contents:

• Gigabit PoE+ Smart Switches with 4 Dedicated 10G SFP+ Ports


• AC Power Cord With C13 Connector (Localized To Region Of Sale)


• Brackets and Screws For Rack Mounting


• Rubber Footpads For Tabletop Installation


• Rubber Protection Caps, Which Are Already Installed In the SFP Sockets


• Installation Guide

Limited Warranty: Lifetime
Weight (Approximate): 11.09 lb (5030 g)
