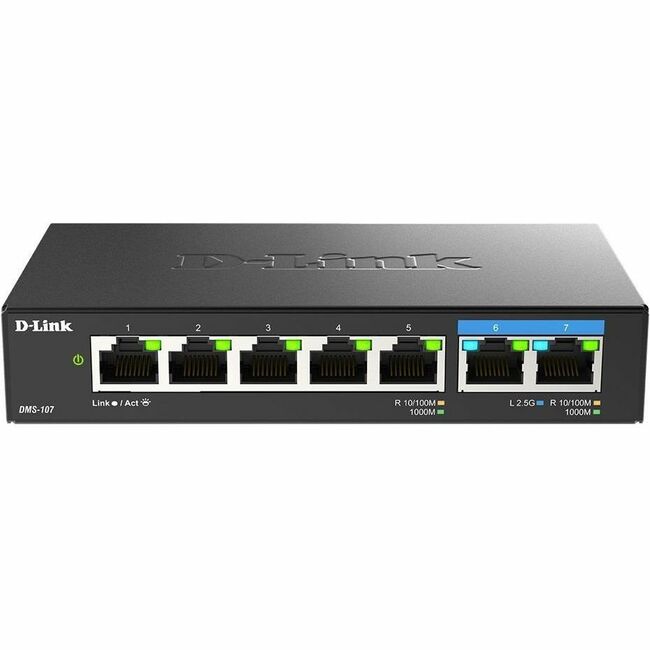

D-Link 7-Port Multi-Gigabit Unmanaged Switch

D-Link 7-Port Multi-Gigabit Unmanaged Switch

Why You Want It | Plug and Play

Ready to perform right out of the box with no configuration required

Multi-GIGABIT Ports

Multi-Gigabit ports for high data rate transmission

Wi-Fi 6 Ready

Take advantage of the efficiency and speeds provided by Wi-Fi 6

LED Indicator

Multi-Gigabit ports for high data rate transmission

Durable Design

Metal housing enhances the durability

Silent Operation

Fanless design enhances reliability and is suitable for noise-free working environments

QoS Management

Quality of Service for uninterrupted connections

Energy Saving Technology

Designed for low power consumption

Plug-and-play to enjoy fast connectivity

The DMS-107 7-Port Multi-Gigabit Unmanaged Switch offers five Gigabit and two 2.5 Gigabit Ethernet ports for high-speed to meet your high-performance expectations. The Gigabit ports are ready for Wi-Fi 6, providing unlimited speed and performance. DMS-107 also supports IEEE 802.3az Energy-Efficient Ethernet (EEE), which can reduce power consumption and optimize usage. Without complex installation steps, plug-and-play is convenient and easy for every usage scenario.

Silent Operation

The DMS-107 owns a metal out case with a fanless design which can improve heat dissipation and allows noise-free operation in the working area. All the high-quality designs enhance its durability and are ideally suited for Small Office Home Office (SOHO) environments.

Integrated Networking

The auto-sensing ports of DMS-107 flexibly build an integrated workgroup network. Through the auto-negotiation feature, these ports will detect the network speed and allow you to get the maximum speed possible for each device.

Traffic Management

The traffic management of DMS-107 includes IEEE 802.1p Quality of Service (QoS) and IEEE 802.3x Flow Control. The 802.1p QoS feature classified the traffic into 8 priority levels and prioritized by their importance. As for Flow Control, it will temporarily stop data transmission when the switch's input buffer is full, helping to minimize dropped packets. The traffic management features provide a more reliable connection for all your devices.

Green Technology

Under the concept of Eco-friendly, the DMS-107 switch features green technology, such as IEEE 802.3az Energy-Efficient Ethernet (EEE) and link status detection. While the network utilization is low, Energy-Efficient Ethernet can efficiently reduce the switch's power consumption, bringing down the cost in the inactivity duration. Also, the power-saving mode automatically powers down the ports when no link is detected. The link status detection function will effectively save energy and costs.

Simplified Installation

All the ports on the DMS-107 support automatic MDI/MDIX crossover without any cables. Each port connects the server, hub, router, or switch easily just by plugging in the cable. Besides, the DMS-107 ports feature LED indicators. With the indicators, you can easily distinguish link status.

• Quickly and easily set up a wired network with 7 networking ports


• Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree


• With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized


• The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed


• Gigabit Ethernet port for ultra-fast network speeds

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Material: Metal
Brand Name: D-Link
Form Factor: Wall Mountable
Manufacturer: D-Link Systems, Inc
Product Model: DMS-107
Product Name: 7-Port Multi-Gigabit Unmanaged Switch
Manufacturer Part Number: DMS107
Manufacturer Website Address: http://www.dlink.com
Weight (Approximate): 295.2 g
