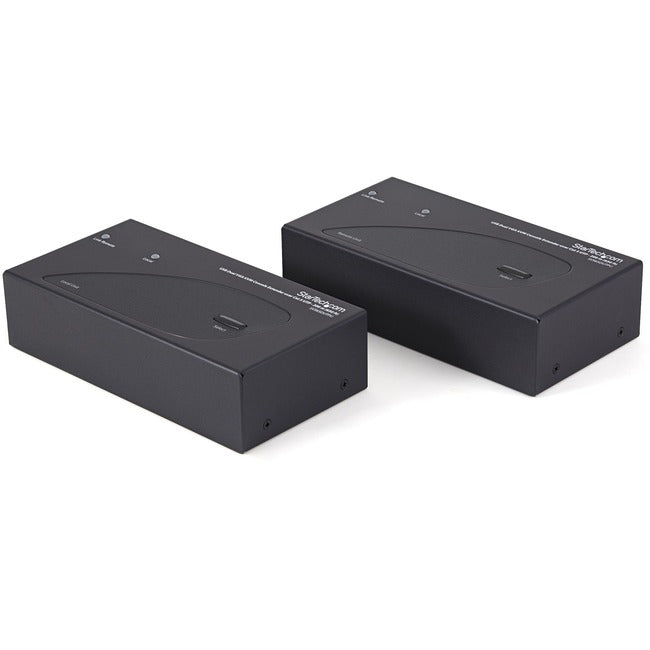

StarTech.com USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m

StarTech.com USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.

The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

More from the Manufacturer

• Dual VGA KVM extender at 1920x1200 resolution


• Can be used with a single computer or connected to an existing KVM switch


• Extend up to 650 ft. (200 m) using 2 industry-standard UTP network cables


• KVM console connections available on both the local and remote end


• Supports most combo keyboard and mouse sets (including Wireless)


• Intuitive hot-key commands for fine-tuning video

Product Type: KVM Console/Extender
Environmentally Friendly: Yes
Environmental Certification: REACH
Transmitter Height: 1.60" (40.64 mm)
Transmitter Width: 3.10" (78.74 mm)
Transmitter Depth: 6.10" (154.94 mm)
Receiver Height: 1.60" (40.64 mm)
Receiver Width: 3.10" (78.74 mm)
Receiver Depth: 6.10" (154.94 mm)
Transmitter Weight (Approximate): 535 g
Receiver Weight (Approximate): 535 g
Taa Compliant: Yes
Product Color: Black
Packaged Quantity Condition: Kit
Country Of Origin: Taiwan
Brand Name: StarTech.com
Form Factor: Desktop
Manufacturer: StarTech.com
Product Name: USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m
Manufacturer Part Number: SV565DUTPU
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1
Package Contents:

• 1 x Local Unit
• 1 x Remote Unit
• 2 x 6 ft 2-in-1 USB VGA KVM Cables
• 8 x Rubber Feet
• 1 x Universal Power Adapter (NA/EU/UK/AU)
• 1 x Instruction Manual
