StarTech.com 2 Port Low Profile PCI Express Serial Card - 16550

StarTech.com 2 Port Low Profile PCI Express Serial Card - 16550

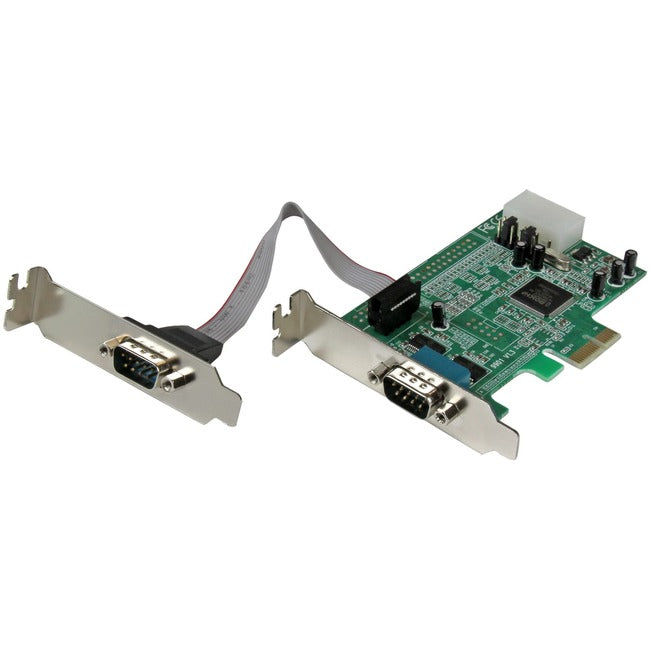

The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®, and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).

This product is a replacement for our PEX2S552LP card.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

• 128-byte deep FIFO per transmitter and receiver


• Automated in-band software flow control using programmable Xon/Xoff in both directions


• Automated out-of-band flow control using CTS/RTS and DSR/DTR


• Compliant with PCI Express base specifications revision 1.1a


• Selectable power output on pin 9 for the serial port


• Native single-chip, single lane PCI Express


• Ships with half-height/low profile mounting bracket, includes optional standard profile bracket


• Single chip design optimizes speed and reliability


• One high speed RS232 serial port with data transfer rate up to 460.8 Kbps

Product Type: Serial Adapter
Environmentally Friendly: Yes
Card Height: Dual-profile
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: StarTech.com
Form Factor: Plug-in Card
Manufacturer: StarTech.com
Product Name: 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
Manufacturer Part Number: PEX2S553LP
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1
Package Contents:

• 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
• DB9 Ribbon Cable
• Full Profile Bracket
• Low profile Bracket
• Driver CD
• Instruction Manual

Limited Warranty: 2 Year
Weight (Approximate): 62.4 g
