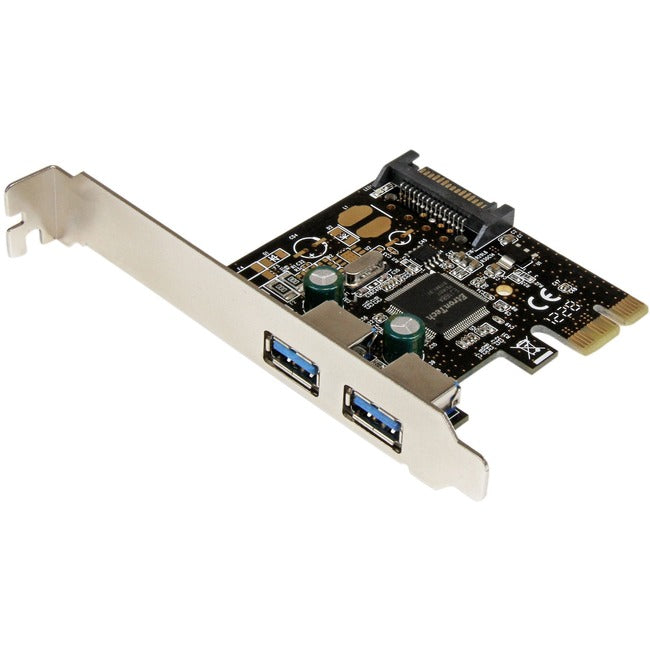

StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power - 5Gbps

StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power - 5Gbps

The PEXUSB3S23 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.

The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

• Includes a Low Profile/half-height installation bracket


• Backward compatible with USB 2.0 and USB 1.0/1.1 devices


• Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications


• Compliant with PCI Express 2.0 specifications


• Supports data rates up to 5 Gbps


• SATA power connector (required) provides up to 900mA per USB port


• Provides two external USB 3.0 connections

Product Type: USB Adapter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Color: Black
Country Of Origin: China
Brand Name: StarTech.com
Form Factor: Plug-in Card
Length: 3.10" (78.74 mm)
Manufacturer: StarTech.com
Product Name: 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power
Manufacturer Part Number: PEXUSB3S23
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1
Platform Supported: PC
Package Contents:

• 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power
• 1 x Low Profile Bracket
• 1 x Driver CD
• 1 x Instruction Manual

Limited Warranty: 2 Year
Weight (Approximate): 43 g
