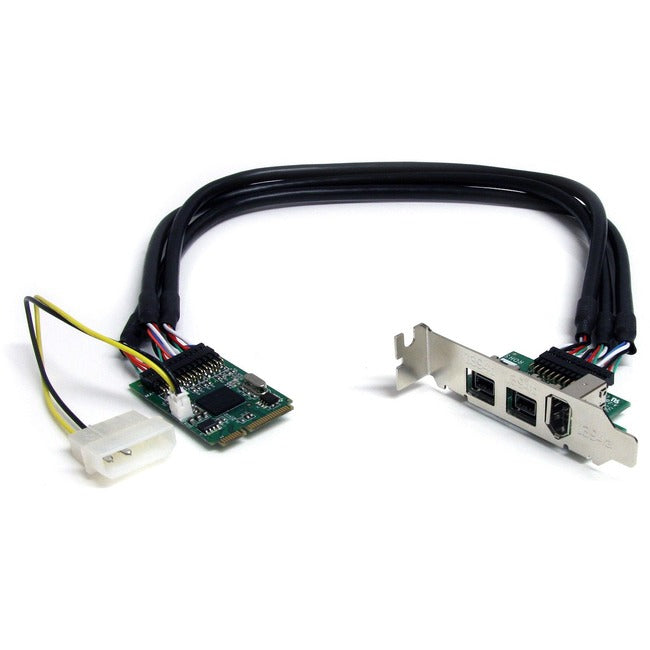

StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter

StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps.

Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

• Plug-and-Play and hot-swap compatible


• Compliant with IEEE 1394b and backward compatible with IEEE 1394a - 2000 as well as 1394-1995 standards


• Optional external power support for high-powered FireWire devices


• Compliant with PCI Express Mini Card specification 1.2


• 1 external 6-pin FireWire-400 port with supported transfer rates up to 400 Mbps


• 2 external 9-pin FireWire-800 ports with support for data transfer rates up to 800 Mbps

Product Type: FireWire Adapter
Environmentally Friendly: Yes
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: StarTech.com
Form Factor: Plug-in Card
Length: 2" (50.80 mm)
Manufacturer: StarTech.com
Product Name: 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter
Manufacturer Part Number: MPEX1394B3
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1
Platform Supported: Linux
Package Contents:

• 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter
• 1 x Internal Data Cable
• 1 x 4xpin LP4 Molex Adapter Cable
• 1 x Full Profile Bracket
• 1 x Video Editing Software CD
• 1 x Instruction Manual

Limited Warranty: 2 Year
Weight (Approximate): 90.7 g
