StarTech.com PCI to PCI Express Adapter Card

StarTech.com PCI to PCI Express Adapter Card

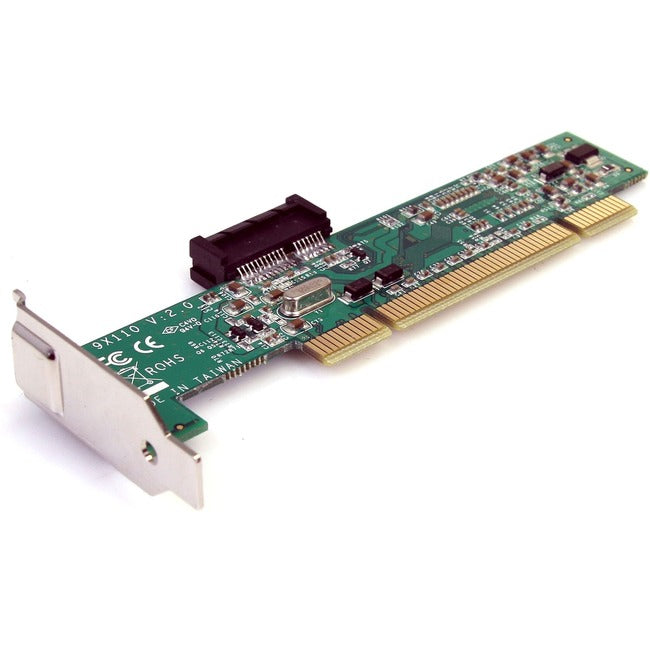

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.

The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.

More from the Manufacturer

• No driver or software installation


• Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2


• Works with Universal Voltage PCI Slots (5V and 3.3V & 5V)


• PCI revision 2.3 compliant with up to 133MBps of available bandwidth


• Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card

Product Type: Riser Card
Environmentally Friendly: Yes
Country Of Origin: Taiwan
Brand Name: StarTech.com
Manufacturer: StarTech.com
Product Model: PCI1PEX1
Product Name: PCI to PCI Express Adapter Card
Manufacturer Part Number: PCI1PEX1
Manufacturer Website Address: http://www.startech.com
Package Contents:

• PCI to PCI Express Adapter Card
• 1 x Spare Full Profile Bracket
• 1 x Instruction Manual

Limited Warranty: 2 Year
Thickness: 0.79" (20.07 mm)
Weight (Approximate): 32 g
