StarTech.com USB serial adapter - RS422 - RS485 - Industrial - serial - 1 port

StarTech.com USB serial adapter - RS422 - RS485 - Industrial - serial - 1 port

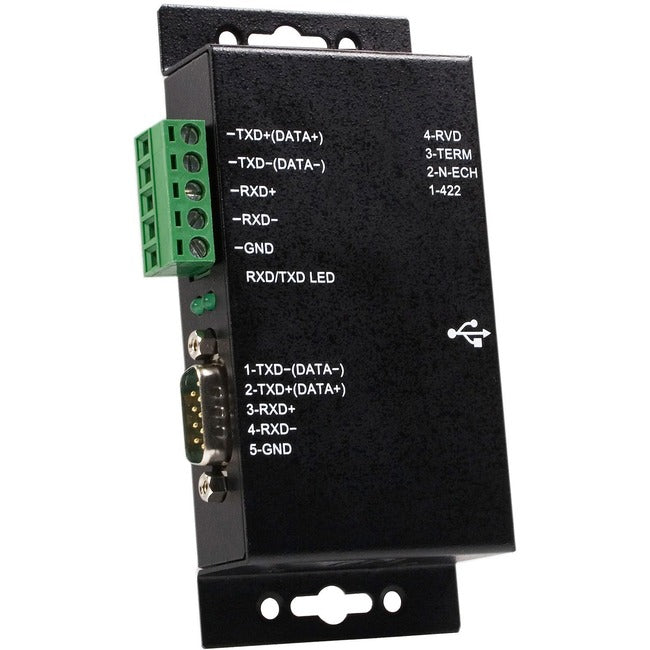

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.

The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.

The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

• Supports 4-wire RS422 and 2-wire RS485 applications


• Optical Isolation and Surge Protection (2500 Vrms)


• Supports DB9 and terminal block connector


• RS422/485 Baud rate up to 921.6 Kbps


• RS-485 mode supports Auto Transceiver Turn Around (ATTA)


• Compatible with both USB 2.0 and USB 1.1


• Provides one RS422/485 port while powering the device through USB

Product Type: Serial Adapter
Environmentally Friendly: Yes
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: StarTech.com
Manufacturer: StarTech.com
Product Model: ICUSB422IS
Product Name: 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
Manufacturer Part Number: ICUSB422IS
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1
Package Contents:

• 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
• 1 x 6ft USB A to B Cable
• 1 x Driver CD
• 1 x User Manual

Limited Warranty: 2 Year
Weight (Approximate): 181.4 g
