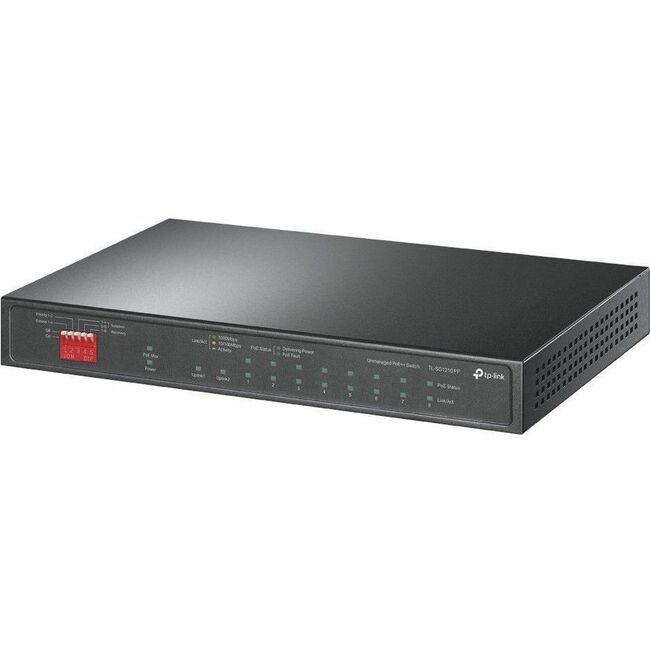

TP-Link 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++

TP-Link 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++

TL-SG1210PP is an unmanaged switch with 10 Gigabit ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Power Over Ethernet

8 RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8.

Overload Arrangement

TL-SG1210PP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ? 123 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Intelligent Power Management

Priority (port 1 > port 2 ......> port 8): This function will help protect the system when the system power is overloaded. For example, port 3, 4, 5 and 6 is using 25 W respectively (maximum power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port 1 with 35 W, and then the system will cut off the power of port 6 because of the overloaded power, this means port 3, 4 and 5 will use 25 W respectively and port 1 will use 35 W, no power will be supplied to port 6.

• Cascade to other network devices through the uplink port to expand your local area network


• Features 10 networking ports to easily establish a local network or expand your existing one


• Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree


• The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed


• Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks

Product Type: Ethernet Switch
Brand Name: TP-Link
Form Factor: Wall Mountable
Manufacturer: TP-LINK Technologies Co., Ltd
Product Model: TL-SG1210PP
Product Name: 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++
Manufacturer Part Number: TLSG1210PP
Manufacturer Website Address: http://www.tp-link.com
