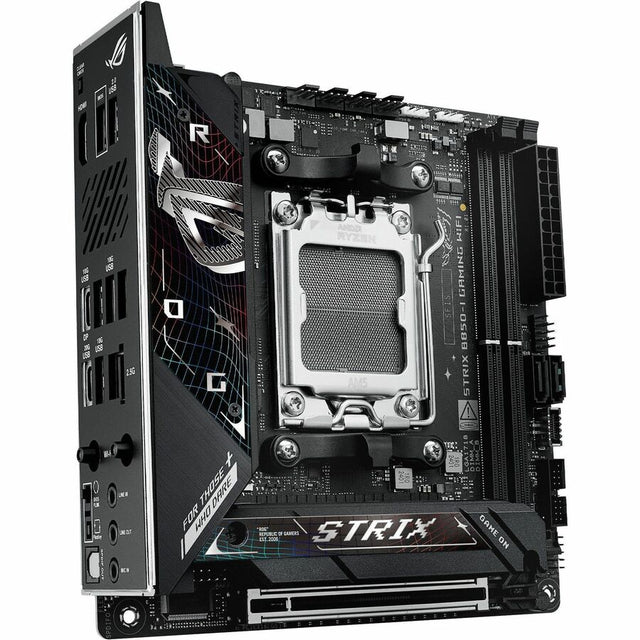

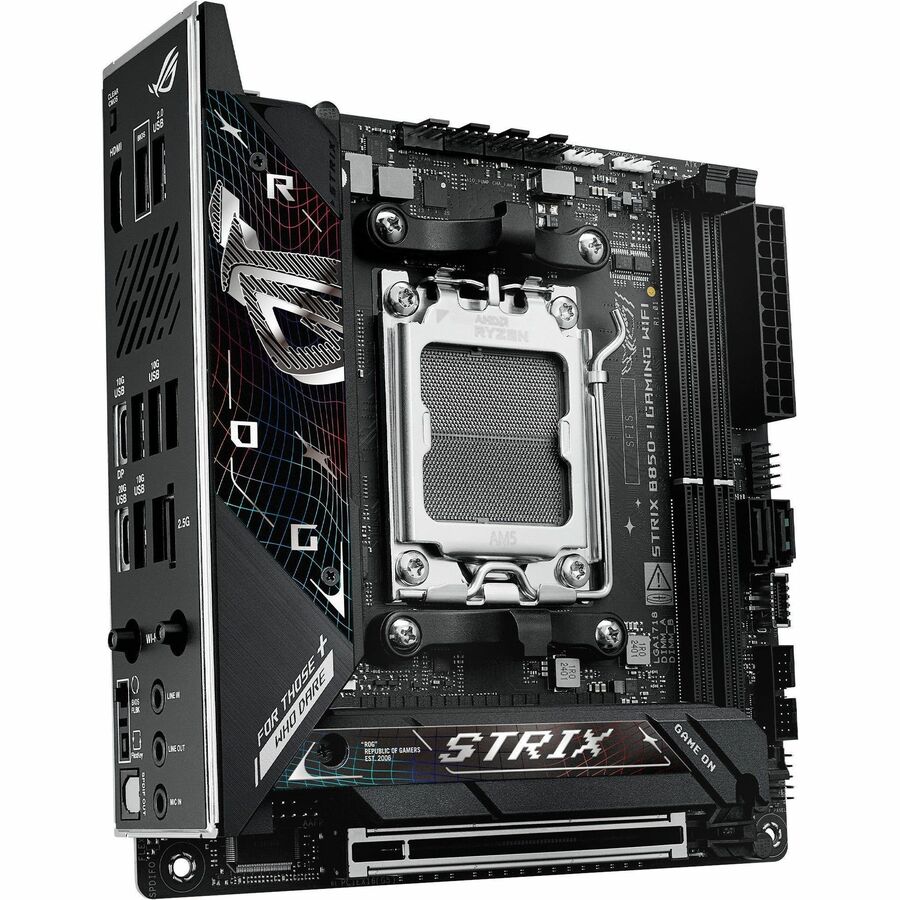

Asus ROG Strix B850-I GAMING WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - Mini ITX

Asus ROG Strix B850-I GAMING WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - Mini ITX

ROG STRIX B850-I GAMING WIFI

AMD B850 Mini-ITX motherboard with 10+2+1 power stages, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots, PCIe^®5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, USB 20Gbps Type-C^®, ASUS AI Advisor, AI Overclocking, AI Networking II, and Aura Sync RGB lighting.

•
  AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors


•
  Intelligent Control:ASUS AI Advisor, AI Overclocking, AI Networking II and AEMP to simplify setup and improve performance


•
  Robust Power Solution: 10+2+1 power solution rated for up to 70A per stage with ProCool power connectors


•
  Optimized Thermal Design: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads


•
  Latest M.2 Support:Two onboard PCIe^®5.0 M.2 slots, one cooled by a large heatsink to maximize performance, and the other for additional storage


•
  Abundant Connectivity: USB 20Gbps Type-C^®port, USB 10Gbps Type-C^®front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI™ port


•
  High-Performance Networking: On-board WiFi 7 (802.11be) with Intel^®2.5 Gb Ethernet


•
  DIY Friendly Design:PCIe Slot Q-Release Slim, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button, FlexKey button and pre-mounted I/O shield


•
  Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos^®



•
  Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including two addressable Gen 2 headers


•
  Renowned Software:ASUS DriverHub, TurboV Core, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard.

ASUS AI INTELLIGENCE | ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

• Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace


• DDR5 SDRAM slot for convenient installation of memory


• Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11be wireless standard support


• HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers


• DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance


• Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor

Product Type: Gaming Desktop Motherboard
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Brand Name: Asus ROG
Form Factor: Mini ITX
Manufacturer: ASUS Computer International
Product Model: B850-I GAMING WIFI
Product Name: Strix B850-I GAMING WIFI Gaming Desktop Motherboard
Product Line: Strix
Manufacturer Part Number: ROGSTRIX B850-IGAMINGWIFI
Manufacturer Website Address: http://www.asus.com
Package Contents:

•
  Strix B850-I GAMING WIFI Gaming Desktop Motherboard


•
  2 x SATA 6Gb/s cables


•
  1 x ASUS WiFi Q-Antenna


•
  1 x Cable ties package


•
  1 x M.2 backplate Q-Latch package(s)


•
  1 x M.2 Q-Slide package


•
  1 x ROG key chain


•
  1 x ROG Strix stickers


•
  1 x M.2 backplate rubber package(s)


•
  1 x Quick start guide
