StarTech.com USB to Serial Adapter - 2 Port - RS232 RS422 RS485 - COM Port Retention - FTDI USB to Serial Adapter - USB Serial

StarTech.com USB to Serial Adapter - 2 Port - RS232 RS422 RS485 - COM Port Retention - FTDI USB to Serial Adapter - USB Serial

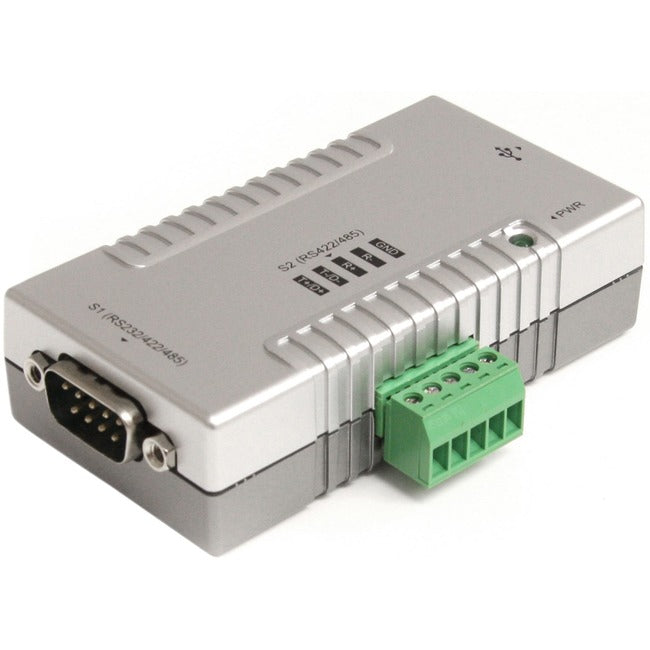

The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations.

For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

• Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware


• Multiple interface modes, including: 4 wire RS422(TxD+/-, RxD+/-), and 2 wire RS485 (DATA+, DATA-)


• Ability to rename devices for easy recognition


• COM Port assignments maintained after reboot


• Port 1 (DB9) configurable for RS232, RS422, or RS485; Port 2 (Terminal Block) configurable for RS422 or RS485


• Features rugged screw-lock USB port to ensure cords are not accidentally disconnected


• Includes a bracket for wall mounting the USB to Serial adapter


• USB-powered; No additional external power adapter required


• Backwards compatible with USB 1.1


• Both ports can function simultaneously with mixed or matched communication protocols

Product Type: Serial Adapter
Environmentally Friendly: Yes
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: StarTech.com
Form Factor: External
Manufacturer: StarTech.com
Product Name: 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention
Manufacturer Part Number: ICUSB2324852
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1
Package Contents:

• 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention
• Wall Mounting Bracket
• USB A to B Cable
• Driver CD
• Installation Guide

Limited Warranty: 2 Year
Weight (Approximate): 300 g
