CyberPower Metered PDU20M2F10R 12-Outlets PDU

CyberPower Metered PDU20M2F10R 12-Outlets PDU

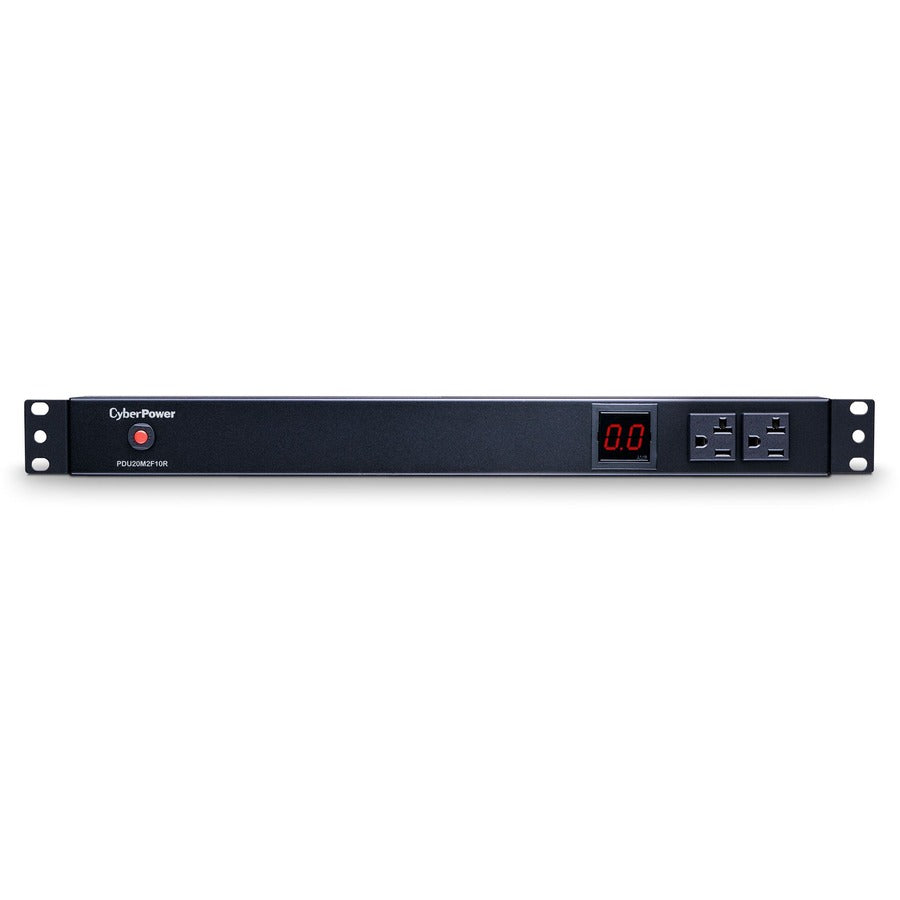

The CyberPower PDU20M2F10R, a 12-outlet (2 front, 10 rear), rackmount metered power distribution unit (PDU), provides 100 - 125 V 20A output. It distributes power to 12 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.

Designed for datacenters and other electrically demanding applications, the PDU20M2F10R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically. The PDU20M2F10R comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design
Safeguards against accidental power shutdown.

Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.

Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.

What's In The Box

PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card

• 1U Rack Mount - Rugged industrial-grade metal housing


• 120V AC - 50/60Hz - 20-amp electrical capacity with circuit breaker


• 12 NEMA 5-20R (2 Front/10 Rear) output receptacles


• Metered PDU

Product Type: PDU
Environmentally Friendly: Yes
Energy Star: No
Mounting Orientation: Vertical
Country Of Origin: China
Product Series: Metered PDU
Rack Height: 1U
Brand Name: CyberPower
Manufacturer: CyberPower Systems, Inc
Product Model: PDU20M2F10R
Product Name: Metered PDU20M2F10R 12-Outlets PDU
Mount Type: Rack-mountable
Manufacturer Part Number: PDU20M2F10R
Manufacturer Website Address: https://www.cyberpowersystems.com/
Package Contents:

• Metered PDU20M2F10R 12-Outlets PDU
• Cord Retention Tray
• User Manual
• Screw Kit
• Cord Clip Kit
• Horizontal Mounting Brackets
• Vertical Mounting Brackets
• Product Registration Card

Limited Warranty: Lifetime
Weight (Approximate): 5 lb (2267.96 g)
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
