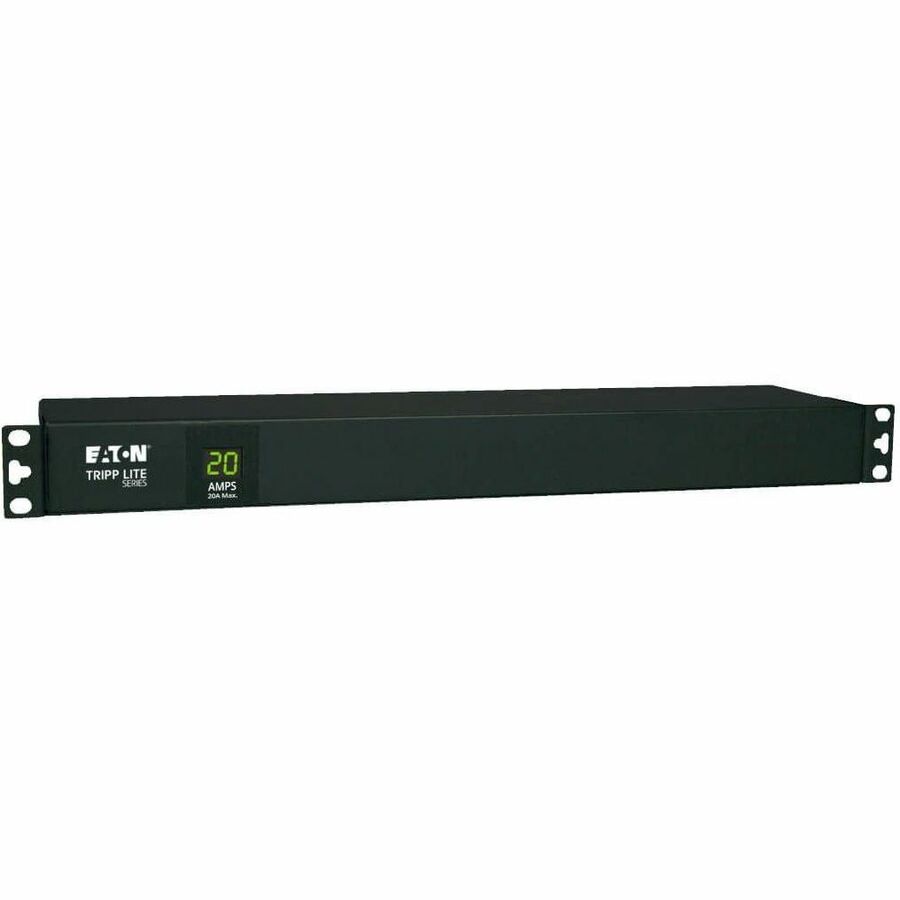

Tripp Lite PDUMH20 PDU Metered 120V 20A 12 Outlet

Tripp Lite PDUMH20 PDU Metered 120V 20A 12 Outlet

Tripp Lite's PDUMH20 AC power distribution unit offers a digital current monitor and provides 20 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potential for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 12 rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH20 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear-facing NEMA 5-15/20R outlets, 15-ft. AC power cord with L5-20P input plug. Comes wih 6-inch L5-20P-to-5-20P adapter, 20 amp breaker, TVSS grounding lug, and rugged all-metal rackmount case design.

More from the Manufacturer

• 12 NEMA 5-15/20R outlets


• NEMA 5-20P / L5-20P input; 15 ft. / 4.5m line cord


• Metered single phase 20A 120V PDU


• 1U horizontal rackmount; digital current meter

Product Type: PDU
Environmentally Friendly: Yes
Mounting Orientation: Vertical
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country Of Origin: Vietnam
Rack Height: 1U
Brand Name: Tripp Lite by Eaton
Manufacturer: Eaton Corporation
Product Model: PDUMH20
Product Name: PDUMH20 PDU Metered 120V 20A 12 Outlet
Mount Type: Rack-mountable
Manufacturer Part Number: PDUMH20
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Package Contents:

• PDUMH20 PDU Metered 120V 20A 12 Outlet


• PDUMH20 Metered rackmount PDU


• Owner's manual with warranty information

Limited Warranty: 2 Year
Weight (Approximate): 3 lb (1360.78 g)
