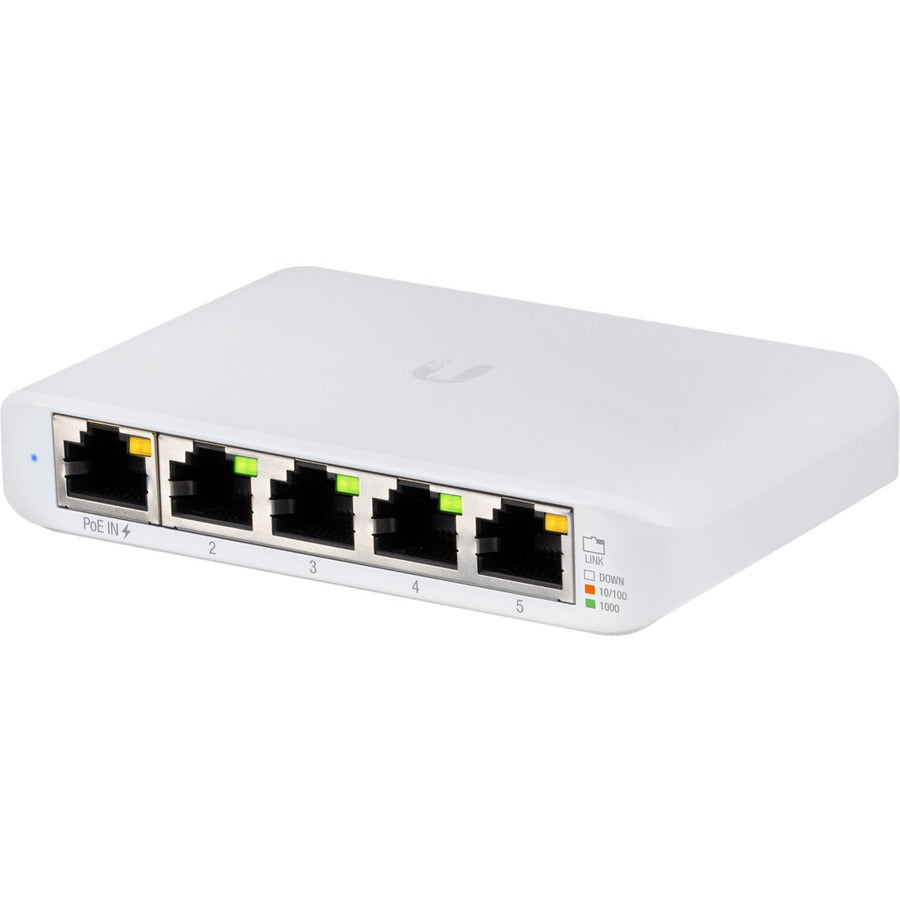

Ubiquiti Compact 5-Port Gigabit Switch

Ubiquiti Compact 5-Port Gigabit Switch Expand your network with the UniFi® Switch Flex Mini, part of the Ubiquiti® UniFi Enterprise System.

Compact Desktop Design

The cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment.

Copper Connectivity

Five RJ45 ports offer 10/100/1000 links. One port also supports 802.3af/at PoE input.

Efficient Use of Energy

The UniFi Switch Flex Mini uses only a maximum of 2.5W.

For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter.

Switching Performance

The UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Scalable UniFi Network Network Application

Management Capabilities

The UniFi Network™ Application can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview

From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network's vitals and make on-the-fly adjustments as needed.

Multi-Site Management

A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Deep Packet Inspection

Ubiquiti's proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics

The UniFi Network Application provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Software Features

The UniFi Network Application software offers the following features for the UniFi Switch Flex Mini:

• Centralized configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable

Switch Configuration

You can access the UniFi Switch Flex Mini through the UniFi Network Application to configure a variety of features:

• Operation mode (switching or mirroring) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port

Switch Port Status

You can also view status information for each port:

• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting

More from the Manufacturer

• Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
• No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
• With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
• Managed switch provides a reliable foundation for your network
• Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Product Type: Ethernet Switch
Brand Name: Ubiquiti
Form Factor: Desktop
Manufacturer: Ubiquiti Inc.
Product Name: Compact 5-Port Gigabit Switch
Product Line: USW Flex Mini
Manufacturer Part Number: USW-Flex-Mini-5
Manufacturer Website Address: http://www.ui.com
Packaged Quantity: 5
Limited Warranty: 1 Year
Weight (Approximate): 5.29 oz (150 g)
Feature1: Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
Feature2: No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
Feature3: With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Feature4: Managed switch provides a reliable foundation for your network
Feature5: Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Feature6: Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
