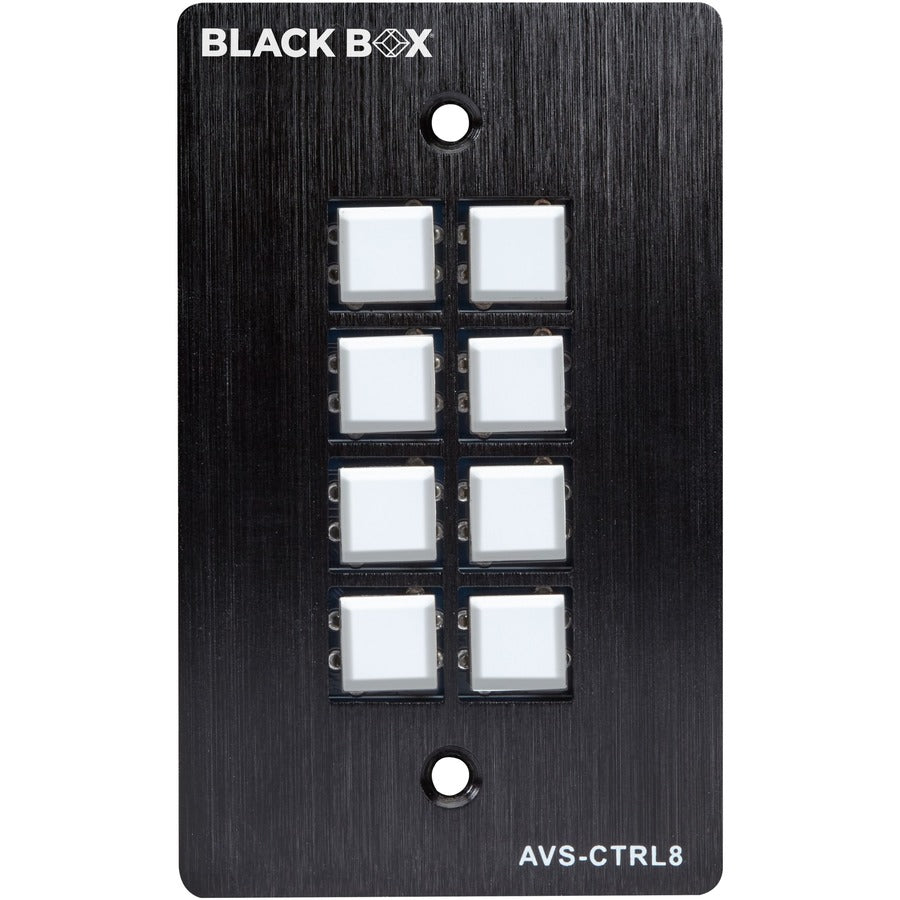

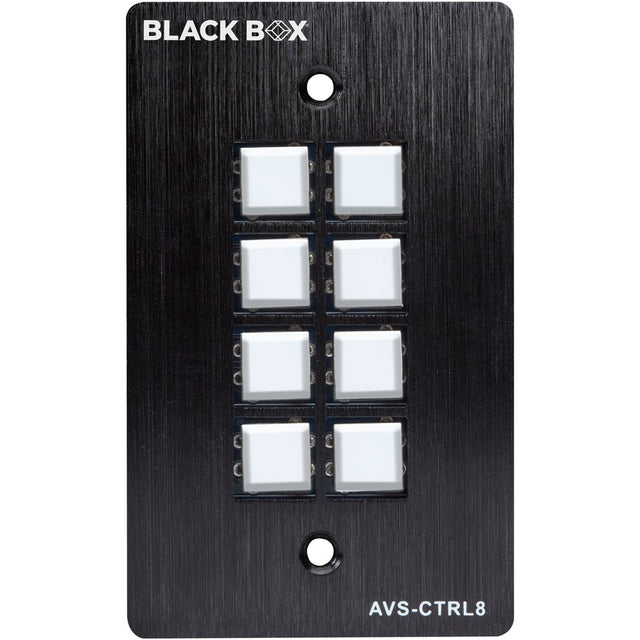

Black Box Wallplate Control Panel - RS-232, 8-Button

Black Box Wallplate Control Panel - RS-232, 8-Button

Each of the 8 buttons can be user programmed, using the included software, to send IR, relay control, or bi-directional RS-232 and RS-485 commands simultaneously to control third-party devices.

The panel is designed in a high quality black metal finish with LED back lit buttons, and fits into a standard single gang outlet box.

• The labels are customizable and changeable.


• The backlit brightness is controllable.


• Supports page, toggle, compare, and delay settings.


• Maximum 99-unit programmable control panels can be looped and controlled together.


• Sleek black metal wallplate design


• ID looping function


• Eight fully programmable buttons.


• Designed to operate any AV or KVM switches or scalers with RS-232 control, or other AV devices with either RS-232, RS-485, IR, or relay control.

Product Type: A/V Control Panel
Additional Warranty Information:

Extended Double Diamond™ Warranty Available (3 Additional Years)

Environmentally Friendly: Yes
Product Color: Sleek Black
Product Material: Metal
Country Of Origin: China
Brand Name: Black Box
Form Factor: Gang Box Mount
Manufacturer: Black Box Corporation
Product Model: AVS-CTRL8
Product Name: Wallplate Control Panel - RS-232, 8-Button
Manufacturer Part Number: AVS-CTRL8
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 3 Year
Weight (Approximate): 149.7 g
Color Family: Black
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
