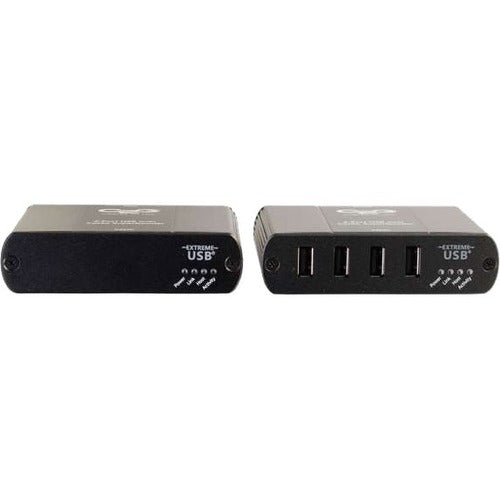

C2G 4-Port USB 2.0 over Cat5 Extender

C2G 4-Port USB 2.0 over Cat5 Extender
The 4-Port USB 2.0 over Cat5 Extender was designed for systems integrators, installers and other end users seeking an innovatively simple yet powerful solution for extending USB signals beyond their native 16.4 foot length limitation. Specifically for use in commercial environments, the 4-Port USB 2.0 over Cat5 Extender provides connectivity for up to 4 USB devices.

Using true USB 2.0 speed and power, this solution provides increased bandwidth and faster data transfer speeds over standard Cat5/6 cabling at lengths up to 328ft. Integrated UTP power inserter technology provides 500 milliamps of power through the power adapter connected to the receiver. This provides enough power to operate most new USB devices and allows for flexibility in equipment placement. Installation is quick and easy with no software or driver installation required.

Product Type: USB Extender
Taa Compliant: Yes
Product Color: Black
Country Of Origin: Canada
Brand Name: C2G
Manufacturer: C2G
Product Name: 4-Port USB 2.0 over Cat5 Extender
Manufacturer Part Number: 34020
Manufacturer Website Address: http://www.cablestogo.ca
Package Contents:

• Transmitter
• Receiver

• Input: 100-240V ~ 50/60Hz
• Output: 24.0V DC, 100mA
• Barrel diameter: 5.5mm
• Center pin polarity: Positive
• Transmitter Connectors: (1) USB B female, (1) RJ45 female
• Receiver Connectors: (4) USB A female, (1) DC power female, (1) RJ45 female
• Weight: 1.979 LB
