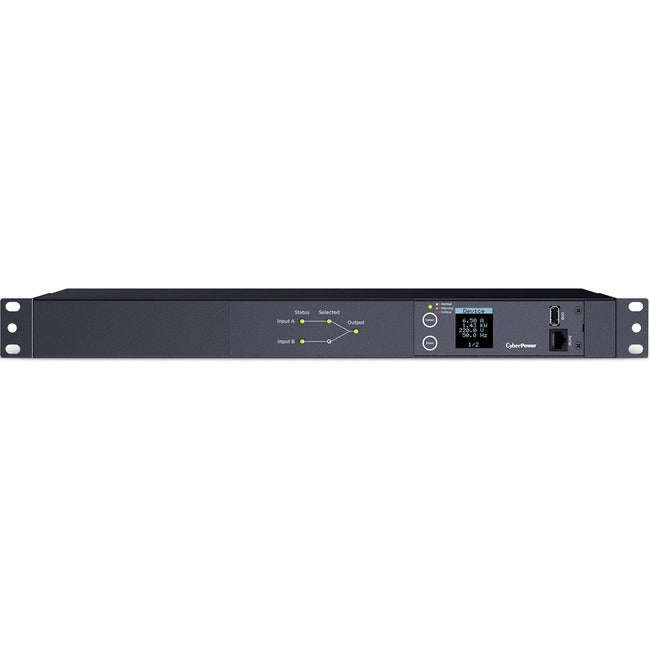

CyberPower Switched ATS PDU PDU24004 12-Outlets PDU

CyberPower Switched ATS PDU PDU24004 12-Outlets PDU
Ensure continued operation of critical devices with the CyberPower PDU24004 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

The PDU24004 supports inputs between 200-240V and includes (12) IEC C13 outlets. Dual IEC C14 power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24004 is protected by a three-year limited warranty.

• Phase: Single


• Amps: 15A (Derated to 12A)


• Volts: 200-240V


• Frequency: 50/60Hz


• Plug type: 2 x IEC-320 C14


• Outlets: 12 x IEC-320 C13


• Size: 1U Rackmount


• Warranty: 3 year

Product Type: PDU
Environmentally Friendly: Yes
Mounting Orientation: Horizontal
Product Color: Black
Country Of Origin: China
Product Series: Metered ATS PDU
Rack Height: 1U
Brand Name: CyberPower
Manufacturer: CyberPower Systems, Inc
Product Model: PDU24004
Product Name: Switched ATS PDU PDU24004 12-Outlets PDU
Mount Type: Rack-mountable
Manufacturer Part Number: PDU24004
Manufacturer Website Address: https://www.cyberpowersystems.com/
Limited Warranty: 3 Year
Weight (Approximate): 3.36 kg
