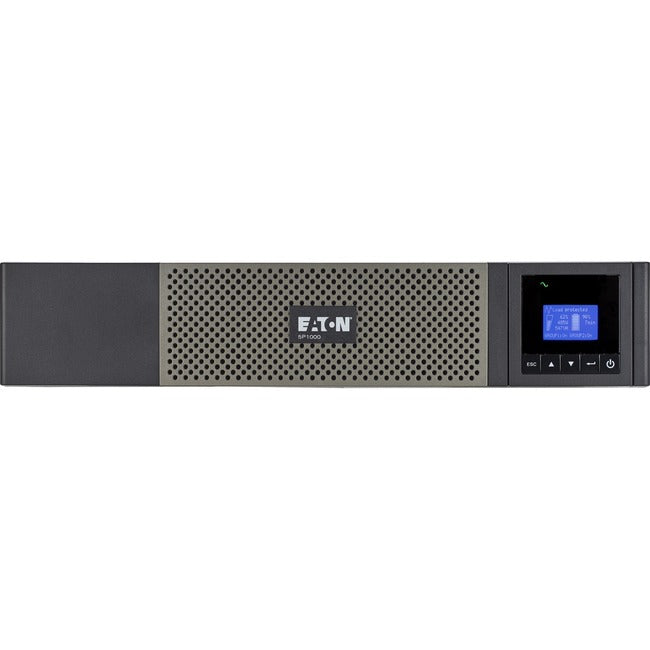

Eaton 5P rackmount compact 1000VA UPS

Eaton 5P rackmount compact 1000VA UPS

1000VA/770W/120V Battery Backup for Network Closets and Small Data Centers

This 5P rack-mount line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P1000RC protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.

Reliable Battery Backup Keeps You Operational Through Power Outages

Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.

Optional Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

NEMA 5-15R Outlets Protect Your Connected Components

Ten managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Six outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

• 5-button graphical LCD offers critical UPS data and load status at a glance


• Optional NETWORK-M2 Gigabit network card enables full remote access and control


• Exclusive ABM technology with 3-stage charging increases internal battery life by 50%


• Provides 20% more wattage compared to traditional UPS systems to protect devices


• Keeps equipment running during outages to allow time for file saves and safe shutdown

Product Type: Line-interactive UPS
Environmentally Friendly: Yes
Country Of Origin: Philippines
Rack Height: 2U
Brand Name: Eaton
Form Factor: Wall Mountable
Manufacturer: Eaton Corporation
Product Name: 1000VA Rack/Wall Mountable UPS
Manufacturer Part Number: 5P1000RC
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Package Contents:

• 1000VA Rack/Wall Mountable UPS
• Quick Start Guide
• USB Cable
• RS-232 Serial Cable
• Multi-purpose Rail Kit
