EATON INDUSTRIES  |  SKU: RELAY-MS

EATON RELAY CARD - MS

$209.99 CAD $270.27

Large orders for business

Unlock Volume Discounts on Larger Orders - Request a Quote Today!

Delivery and Shipping

Shop with Confidence: Order Processed and Tracking Info Provided within 1 Business Day

Have questions about this product? Don't hesitate to contact us at info@logicstechnology.com for fast help!

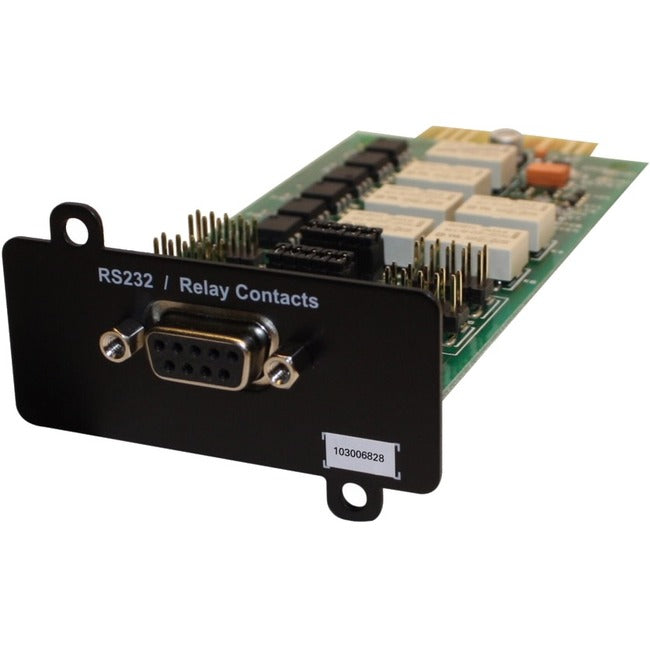

EATON INDUSTRIES Remote Power Management Adapter

http://www.eaton.com/EatonCom/Markets/NorthAmerica

Eaton Remote Power Management Adapter

Mini-Slot Card Works with Eaton 5PX G2 and 9SX UPS Systems

This RELAY-MS relay/serial interface card offers two types of interfaces via a DB9/RS-232 connector: dry contacts (contact mode) and RS-232 serial interface (RS-232 mode). It enables network monitoring of a connected UPS system through a relay-connected computer. Network monitoring helps protect the computer by initiating automatic shutdowns. Supported Eaton UPS systems include the 5P, 5PX, 5PX G2, 9PX, 9PXM, 9SX and 93E series. No UPS shutdown, restart or load disconnection is necessary to install RELAY-MS.

Ready for Operation in 2 Modes

In contact mode (the default setting), RELAY-MS provides UPS information to an alarm system, programmable logic controller (PLC) or computer via dry contacts (relay). Transmitted information includes load power, load on bypass, load on battery, load on utility, battery fault and low battery. In RS-232 mode (RS-232 cable sold separately), RELAY-MS offers an RS-232 interface for connection to a computer or UPS control display unit.


  • UPS shutdown function activated by an external contact or voltage level

  • Communicates UPS info to an alarm system, PLC or PC via dry contacts

  • Supports dry contacts (relay) and RS-232 serial interface via DB9 connector

  • Easy to install on an Eaton 5PX G2 or 9SX UPS without restarting or shutting down

Product Type: Remote Power Management Adapter
Country Of Origin: China
Brand Name: Eaton
Compatibility: Eaton UPS Series:

  • 5P
  • 5P
  • 5PX G2
  • 9PX
  • 9PXM
  • 9SX
  • 93E

Manufacturer: Eaton Corporation
Product Name: Remote Power Management Adapter
Manufacturer Part Number: RELAY-MS
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Limited Warranty: 2 Year
