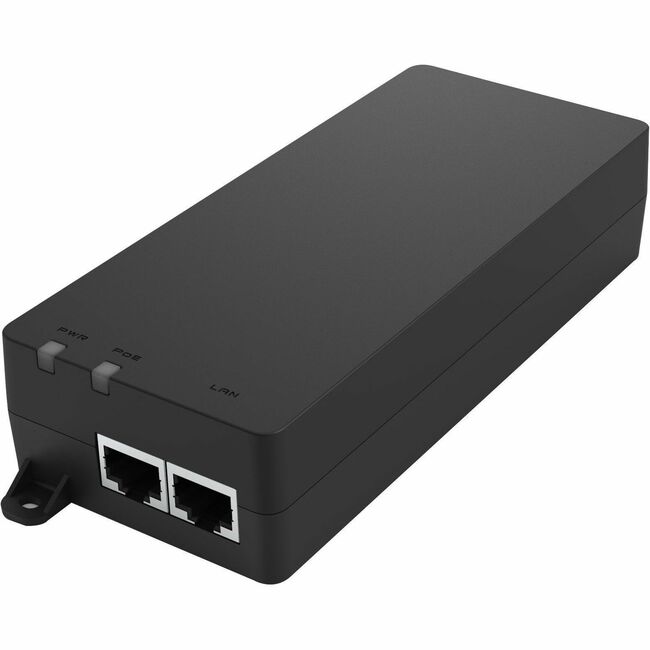

EnGenius EPA5090XBT PoE Injector

The EnGenius EPA5090XBT PoE Injector delivers 90-watts of power and 10Gb data communication to compatible network devices up to 328 feet (100m) over Cat5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.

• IEEE 802.3bt Type 3 & 4 compliant


• IEEE 802.3af/at backward compatible


• Backward compatible for legacy PoE while future proofing network with up to 10Gb bandwidth


• Supports 10/100/1000 Mbps and 2.5/5/10 Gbps applications


• Output power up to 90W over four pairs with auto-detection on power requirement


• Leverage energy efficient PoE of up to 90W with full power capabilities


• Single-port PoE Midspan Injector flexible design allows for either desktop or surface-mount use


• Fan-less design ideal for silent operation


• Simple plug-and-play installation

Product Type: PoE Injector
Certifications & Standards:

• IEC 62328-1: 2014


• UL 62328-1


• FCC Subpart 15 Class B


• EN 55032: 2012 / AC: 2013


• EN 55024: 2010


• IEEE 802.3af/at/bt

Brand Name: EnGenius
Length: 5.90" (149.86 mm)
Manufacturer: EnGenius Technologies, Inc
Product Model: EPA5090XBT
Product Name: EPA5090XBT PoE Injector
Manufacturer Part Number: EPA5090XBT
Manufacturer Website Address: http://www.engeniustech.com
Packaged Quantity: 1
Package Contents:

• EPA5090XBT PoE Injector


• 1 x Quick Installation Guide (Printed on side of Box)


• 1 x Power Cord - 16 inches (40.64cm)

Limited Warranty: 1 Year
Weight (Approximate): 354.4 g
