IOGEAR GCE500U KVM Cosole/Extender

IOGEAR GCE500U KVM Cosole/Extender

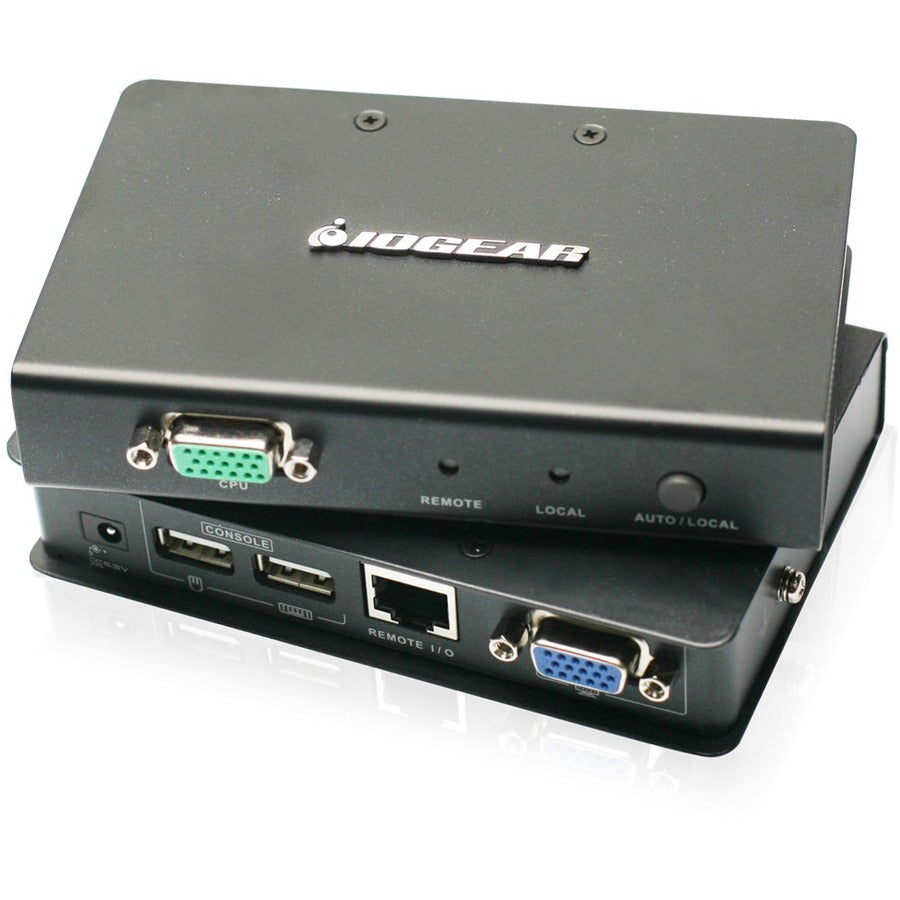

The Iogear's GCE500U KVM Cosole/Extender allows access to a PC with USB or USB KVM switch from a remote USB VGA console (VGA monitor, USB keyboard, and USB mouse) via Cat5e/6 cable up to 500 feet away. This unit is perfect for moving the console away from the computer or the KVM switch. Your console can be moved out of the server room to a location that may be more comfortable and quieter.

More from the Manufacturer

• Plug-N-Play - No need for any software driver installation


• Rack Mountable (rack mount kit included)


• Easy To Operate - Push button selection between local and remote console


• USB over-current detection and prevention


• Maximum video resolution up to:1920 x 1200 @ 60Hz (100 ft. - 30m),1600 x 1200 @ 60HZ (330 ft. - 100m),1280 x 1024 @ 60Hz (500 ft. - 150m)


• Built-in 8KV ESD protection and 2KV surge protection


• Dual Console Operation - Control your system from either the local or remote console


• Built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility


• Auto Signal Compensation (ASC) helps make installation easy, with no need to configure DIP switches


• Extend your KVM console (VGA monitor, USB keyboard & mouse) connection up to 500 ft. via CAT5e cables

Product Type: KVM Console/Extender
Environmentally Friendly: Yes
Country Of Origin: China
Brand Name: IOGEAR
Form Factor: Rack-mountable
Manufacturer: IOGEAR, Inc
Product Model: GCE500U
Product Name: GCE500U KVM Cosole/Extender
Manufacturer Part Number: GCE500U
Manufacturer Website Address: http://www.iogear.com
Packaged Quantity: 1
Package Contents:

• GCE500U KVM Cosole/Extender


• 2 x Rack Mount Kit


• 1 x USB KVM Cable


• 2 x Grounding Wire


• 2 x Power Adapter


• 1 x Installation Guide


• 1 x Warranty Card
