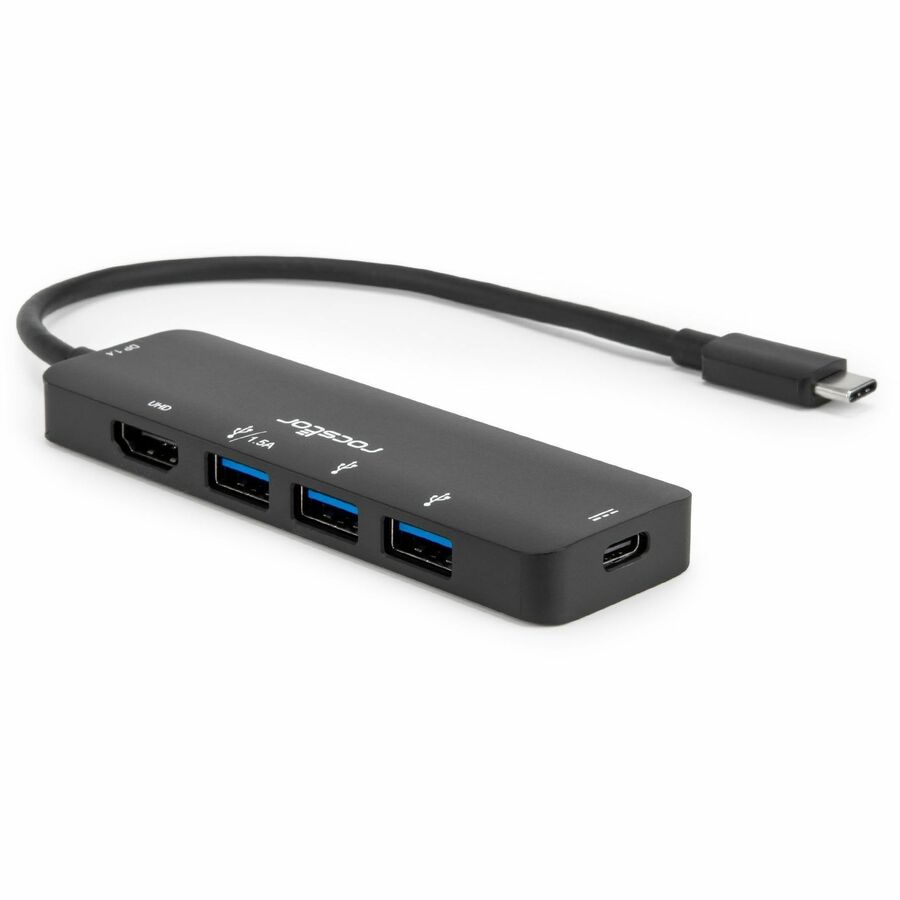

Rocstor Type-C to HDMI/USB-Ax3/Type-C PD Charging with DP1.4 Alt Mode

Rocstor Type-C to HDMI/USB-Ax3/Type-C PD Charging with DP1.4 Alt Mode

The Rocstor Premium USB Type-C 3-in-1 4K Multiport Adapter is the perfect solution for extending the port capabilities of Type-C and Thunderbolt 3 or 4 hosts, such as PCs, laptops, and mobile phones. This compact hub features an HDMI port, a USB-A port, and a Type-C female port, making it ideal for devices with a single Type-C port. Equipped with the latest DisplayPort 1.4 Alt mode supported IC, the adapter supports HDMI video output at a maximum resolution of 4K @ 60Hz while simultaneously transferring USB 3.1 data at up to 5Gbps. Additionally, the Type-C female port supports PD 3.0 with a maximum power delivery of 100 W when connected to a PD Adapter and facilitates data transmission at speeds up to 5Gbps when connected to a Type-C device.

Compatible with all DP Alt mode supported Type-C hosts, the Rocstor 3-in-1 Adapter ensures seamless integration and enhanced functionality. It supports HDR, HDCP 2.2 & HDCP 1.4, and multiple color depth outputs, providing an exceptional visual experience. The USB-A port allows for high-speed data transfer and downstream charging up to 7.5W, while the Type-C port offers both power delivery and data transfer capabilities. Designed for robust performance and versatility, the Rocstor USB Type-C 3-in-1 4K Multiport Adapter is an essential accessory for maximizing your device's connectivity and productivity. Backed by Rocstor 2-year limited warranty and lifetime free technical support.

• Multiport Expansion: Connects a single Type-C port to HDMI, USB-A, and Type-C PD/data ports.


• High-Resolution HDMI Output: Supports 4K/60Hz resolution with DP 1.4 Alt mode and 18Gbps bandwidth.


• USB-A Port: Provides up to 5Gbps data transfer and supports max 7.5W (5V/1.5A) downstream charging.


• Type-C PD Charging and Data Port: Supports up to 100W PD charging with PD 3.0 Fast Role Swap and max 5Gbps data transfer.


• HDR and HDCP Support: Ensures optimal video quality with enhanced depth, detail, brightness, contrast, and color gamut.


• Multiple Color Depth Outputs: Supports 6/8/10/12 bit color depth and various pixel formats (RGB, YCbCr 4:4:4, YCbCr 4:2:2).


• Wide Compatibility: Works with all DP Alt mode supported Type-C hosts, including Thunderbolt 3 and 4 ports.


• Enhanced Protection: Includes short-circuit, over-current, and over-voltage protection for safe and reliable performance.


• Warranty: Rocstor 2-Year Limited Warranty

Product Type: A/V Adapter
Environmentally Friendly: Yes
Product Color: Black
Color Family: Black
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Country Of Origin: Vietnam
Brand Name: Rocstor
Length: 4.50" (114.30 mm)
Manufacturer: Rocstor
Product Name: Type-C to HDMI/USB-Ax3/Type-C PD Charging with DP1.4 Alt Mode
Manufacturer Part Number: Y10A308-B1
Manufacturer Website Address: http://www.rocstor.com
Packaged Quantity: 1
Package Contents:

• Type-C to HDMI/USB-Ax3/Type-C PD Charging with DP1.4 Alt Mode


• 1 x User Manual

Limited Warranty: 2 Year
Weight (Approximate): 1.80 oz (51.03 g)
