StarTech.com  |  SKU: POESLT1G48V

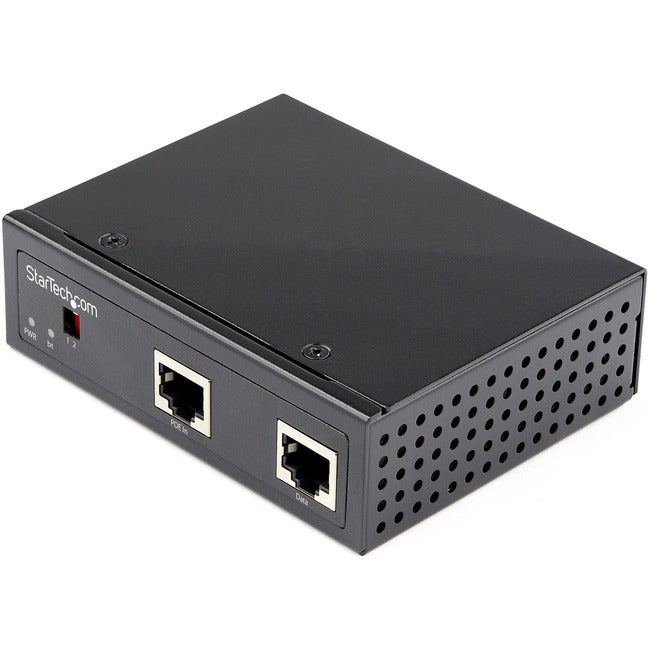

Star Tech.com Industrial Gigabit PoE Splitter - 90W Power over Ethernet PoE++ Splitter - 12-48V DC Splitter 802.3bt Ultra PoE -40C to +75C

$225.99 CAD

Large orders for business

Unlock Volume Discounts on Larger Orders - Request a Quote Today!

Delivery and Shipping

Shop with Confidence: Order Processed and Tracking Info Provided within 1 Business Day

Have questions about this product? Don't hesitate to contact us at info@logicstechnology.com for fast help!

StarTech.com POESLT1G48V PoE Splitter

http://www.startech.com

Star Tech.com Industrial Gigabit PoE Splitter - 90W Power over Ethernet PoE++ Splitter - 12-48V DC Splitter 802.3bt Ultra PoE -40C to +75C

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.

Power Non-PoE Devices

Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:

  • Security (card swipe or proximity boxes)
  • Environmental monitoring (temperature/moisture sensors)
  • Telco (analog interface systems/conversion)

Straightforward Deployment

Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).

The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32

600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer


  • HIGH POWER GIGABIT PoE SPLITTER: Power non-PoE devices using network infrastructure where power isn't available

  • Splits PoE connection (max 90W) into RJ45 data & DC power (terminal block)

  • 90W POE IEEE802.3bt: Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), IEEE 802.3bt (PoE++ / Type 3); power out configured w/ DIP switch for 12/16/24/48V DC (1.5A) via terminal block

  • TECH SPECS: High Speed 1 Gbps

  • 1 x RJ45 PoE In

  • 1 x RJ45 Data Out

Product Type: PoE Splitter
Environmentally Friendly: Yes
Country Of Origin: Taiwan
Certifications & Standards:

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3af
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • EN 60068-2-6
  • EN 60068-2-27
  • EN 60068-2-32
  • EN60950-1

Brand Name: StarTech.com
Form Factor: DIN Rail/Wall Mountable
Length: 4.10" (104.14 mm)
Manufacturer: StarTech.com
Product Model: POESLT1G48V
Product Name: POESLT1G48V PoE Splitter
Manufacturer Part Number: POESLT1G48V
Manufacturer Website Address: http://www.startech.com
Package Contents:
  • POESLT1G48V PoE Splitter
  • Quick-Start Guide
  • Hardware Mounting Kit
  • Terminal Block

Limited Warranty: 2 Year
Weight (Approximate): 150 g
