StarTech.com  |  SKU: PEXESAT322I

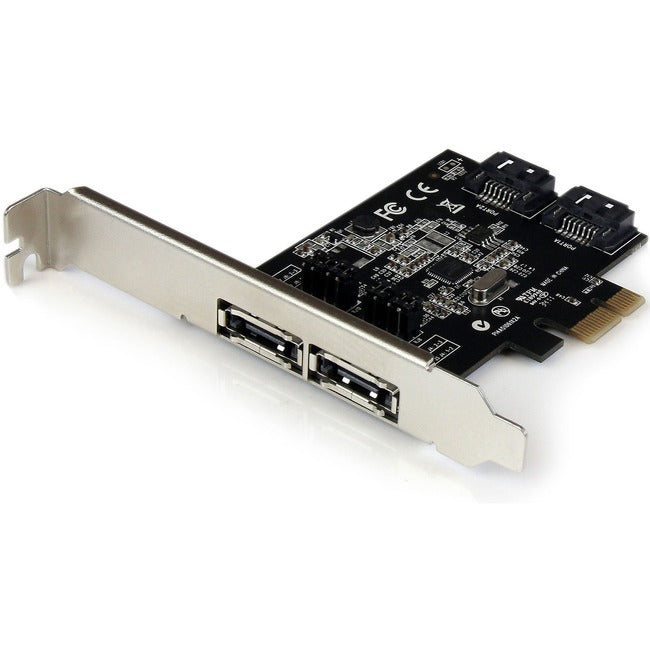

StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext

$66.99 CAD $67.99

Large orders for business

Unlock Volume Discounts on Larger Orders - Request a Quote Today!

Delivery and Shipping

Shop with Confidence: Order Processed and Tracking Info Provided within 1 Business Day

Have questions about this product? Don't hesitate to contact us at info@logicstechnology.com for fast help!

StarTech.com PCIe SATA Controller

http://www.startech.com

StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.

The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.

The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).

The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.

More from the Manufacturer


  • Includes Low Profile/Half-Height installation bracket

  • Compliant with PCI Express 2.0 standards

  • Port Multiplier FIS-based and Command-based switching supported

  • Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands

  • Uses existing SATA I/II cabling

  • Support for SATA-based optical drives (CD/DVD/BD)

  • Compliant with SATA revision 3.0, which can support up to 6Gbps of bandwidth

  • Two internal/external switchable SATA ports

Product Type: SATA Controller
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: China
Brand Name: StarTech.com
Form Factor: Plug-in Card
Length: 4.80" (121.92 mm)
Manufacturer: StarTech.com
Product Name: PCIe SATA Controller
Manufacturer Part Number: PEXESAT322I
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1
Platform Supported: PC
Package Contents:

  • PCIe SATA Controller
  • SATA Cable
  • Low Profile Bracket
  • Driver CD
  • Instruction Manual

Limited Warranty: 2 Year
Weight (Approximate): 48.2 g
