StarTech.com  |  SKU: POEINJ1G90W

StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 52V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C

$333.99 CAD

Large orders for business

Unlock Volume Discounts on Larger Orders - Request a Quote Today!

Delivery and Shipping

Shop with Confidence: Order Processed and Tracking Info Provided within 1 Business Day

Have questions about this product? Don't hesitate to contact us at info@logicstechnology.com for fast help!

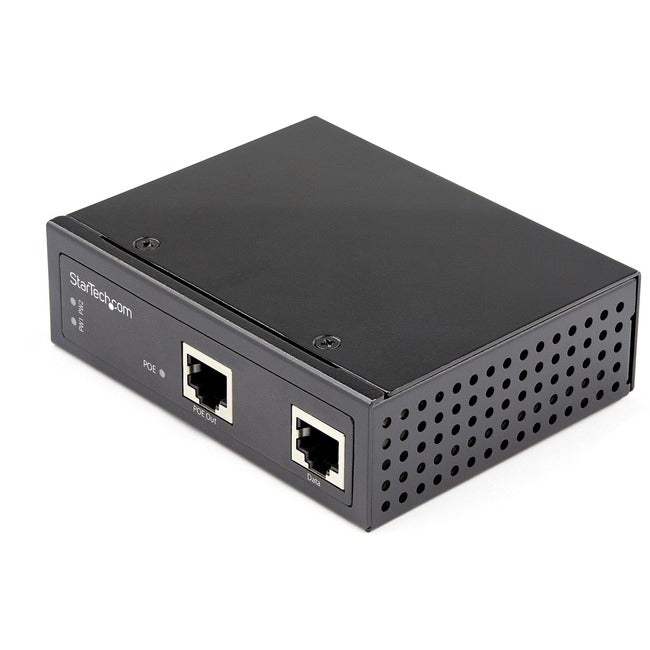

StarTech.com POEINJ1G90W PoE Injector

http://www.startech.com

StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 52V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C
Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

Flexible Configurations for a Variety of Applications

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.

90 Watt Power Budget

As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.


  • Vibration: EN 60068-2-6

  • Shock: EN 60068-2-27

  • Free-fall: EN 60068-2-32

500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

More from the Manufacturer


  • WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible with IEEE 802.3bt (PoE++) and previous 90W proprietary POE standards including Cisco uPoE, Bosch & AXIS

  • 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points

  • TECH SPECS: 1 Gbps; 52V-56VDC Power Input; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 90W max, uPoE, 10/100/1000 Mbps Auto Negotiation, DIN/Wall Mountable, Redundant Power Input

  • ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 500,000+hrs @ 50C; Vibration, shock & free fall rated; Rugged IP-30 aluminum housing; Hardened operating temp of -40C to 75C

  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA compliant PoE Injector is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

Product Type: PoE Injector
Environmentally Friendly: Yes
Product Color: Black
Country Of Origin: Taiwan
Certifications & Standards:

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3af
  • IEEE 802.3bt
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • EN60950-1
  • IP-30
  • EN 60068-2-6
  • EN 60068-2-27
  • EN 60068-2-32

Brand Name: StarTech.com
Form Factor: DIN Rail/Wall Mountable
Length: 3.20" (81.28 mm)
Manufacturer: StarTech.com
Product Model: POEINJ1G90W
Product Name: POEINJ1G90W PoE Injector
Manufacturer Part Number: POEINJ1G90W
Manufacturer Website Address: http://www.startech.com
Package Contents:
  • POEINJ1G90W PoE Injector
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block

Limited Warranty: 2 Year
Weight (Approximate): 174 g
