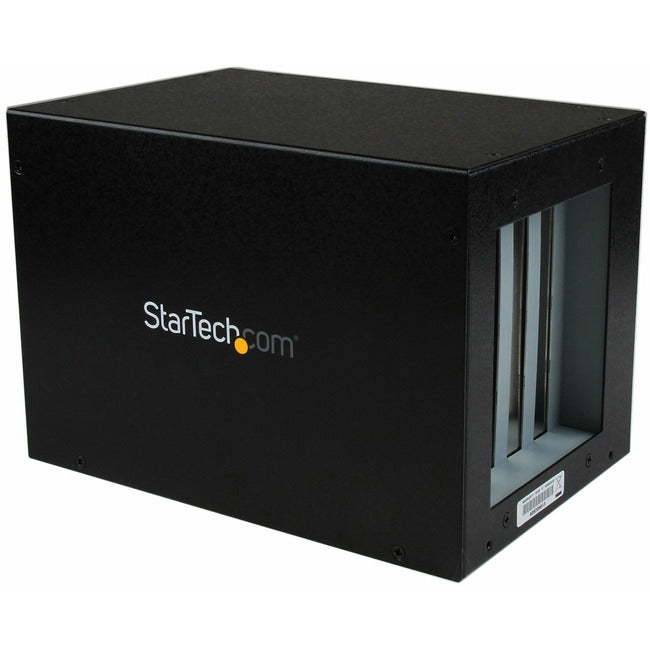

StarTech.com PCI Express to 4 Slot PCI Expansion System - PCI Express to Four Slot PCI Expansion Bay - System bus extender

StarTech.com PCI Express to 4 Slot PCI Expansion System - PCI Express to Four Slot PCI Expansion Bay - System bus extender

StarTech.com's innovative PCI Express to PCI Expansion Chassis provides a quick and simple solution to I/O expandability on almost any PCI Express (PCIe) enabled system. Adding external PCI slots to a server/workstation or laptop, this cost-effective and time-saving method of simply adding additional PCI cards to a server/workstation or providing a platform to be able to swap PCI add-in cards between a mobile and desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems.

The external expansion chassis adds four PCI slots (32-bit/33MHz) to the host computer system, through a single PCI Express connection. Providing total bandwidth of up to 250MBps from the x1 PCIe host controller card, which allows the host computer to function as though the cards in the expansion chassis were connected directly to the motherboard. The PCIe controller card connects directly to the PCI Expansion box with an included DVI cable for a reliable, high quality connection.

A dependable I/O expansion solution, the Expansion Chassis is backed by StarTech.com's 2-year warranty and free lifetime technical support.

More from the Manufacturer

• PCI Express adapter card includes both Full/Low Profile installation brackets and a DVI cable to connect the card to the PCI enclosure


• Self-powered Expansion box with an on/off button


• No driver or software installation


• Supports both 5V and 3.3V & 5V add-in PCI cards


• Rugged steel construction


• Add an additional 4 PCI slots (32-bit/33 MHz), using PCI Express

Product Type: Expansion Chassis
Environmentally Friendly: Yes
Taa Compliant: Yes
Product Color: Black
Product Material: Steel
Country Of Origin: Taiwan
Brand Name: StarTech.com
Length: 8" (203.20 mm)
Manufacturer: StarTech.com
Product Name: PCI Express to 4 Slot PCI Expansion System
Application/Usage: PC
Manufacturer Part Number: PEX2PCI4
Manufacturer Website Address: http://www.startech.com
Package Contents:

• 1 x PCI Expansion Box
• 1 x PCI Express Card
• 1 x 3ft DVI Cable
• 1 x Low Profile Bracket
• 1 x Screw Kit
• 1 x Power Cable
• 1 x Universal Power Adapter

Limited Warranty: 2 Year
Weight (Approximate): 2.36 kg
