StarTech.com  |  SKU: PEXUSB321C

StarTech.com USB 3.2 Gen 2x2 PCIe Card - USB-C 20Gbps PCI Express 3.0 x4 Controller - USB Type-C Add-On PCIe Expansion Card -Windows/Linux

$83.99 CAD

Large orders for business

Unlock Volume Discounts on Larger Orders - Request a Quote Today!

Delivery and Shipping

Shop with Confidence: Order Processed and Tracking Info Provided within 1 Business Day

Have questions about this product? Don't hesitate to contact us at info@logicstechnology.com for fast help!

StarTech.com PCI Express USB Card

http://www.startech.com

StarTech.com USB 3.2 Gen 2x2 PCIe Card - USB-C 20Gbps PCI Express 3.0 x4 Controller - USB Type-C Add-On PCIe Expansion Card -Windows/Linux

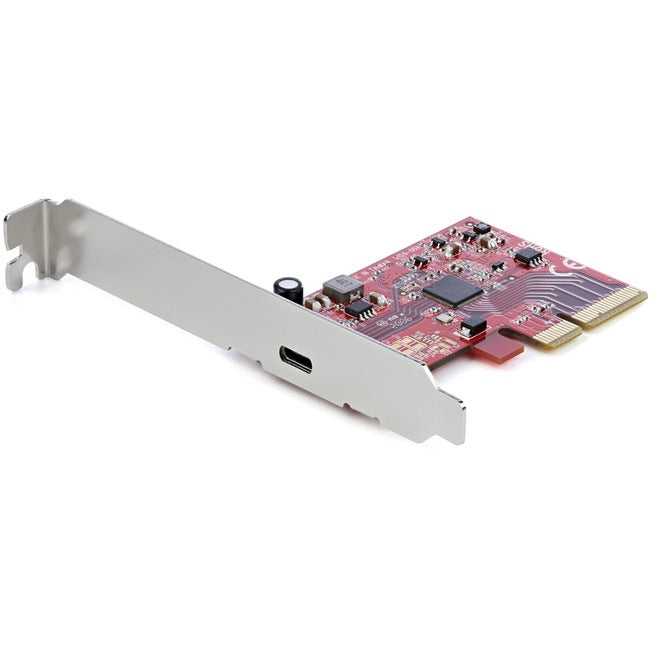

This PCIe USB 3.2 Gen 2x2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding a USB-C (20Gbps) port.

The controller card enables you to connect USB-C Gen 2x2 (20 Gbps) devices to your desktop computer. The USB-C port is ideal for connecting USB devices such as external hard drives and solid state drives or charging and syncing your mobile devices. The USB-C port provides up to 15W (5V/3A) of power and is backward compatible with USB 3.2 Gen 2 (10 Gbps) and USB 3.2 Gen 1 (5 Gbps) devices.

Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 and USB 3.0 (5 Gbps).

The USB 3.2 Gen 2x2 card features an ASMedia ASM3242 host controller that utilizes x4 lanes of the PCIe 3.0 bus, making the card capable of speeds up to 20Gbps and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller card supports Multiple INs to reduce bandwidth loss when multiple devices are connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.

This add-on card includes both full-profile and low-profile installation brackets ensuring you can install it into either a full or low-profile PCIe 3.0 x4 slot (backward compatible w/PCIe 2.0). For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.2/3.0/2.0 devices

PEXUSB321C is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

More from the Manufacturer


  • HIGH PERFORMANCE: Add 1x USB-C SuperSpeed 20Gbps port to your desktop PC with this USB 3.2 Gen 2x2 PCIe Card; Expansion card provides up to 15W (5V @ 3A) to power & charge devices

  • FULL USB 3.2 GEN 2X2 SPEEDS: Featuring the ASMedia ASM3242 host controller using x4 lanes of PCIe 3.0, this card is fully capable of speeds up to 20Gbps enabling fast access to high-performance devices like NVMe drives and SSDs

  • MAXIMIZED USB PERFORMANCE: USB Type-C PCI Express card supports Multiple INs to reduce bandwidth loss when mix speed devices are connected to a Hub (hub must also support this feature); UASP support improves performance with storage devices

  • COMPATIBILITY: Add-on card installs in full or low-profile (bracket incl) PCIe 3.0 x4 slot (Backward compatible w/PCIe 2.0); Windows/Linux/macOS w/auto drivers Win 8 & up; Works w/USB 3.1/3.0/2.0 devices

  • STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; This USB-C PCI-e adapter card is backed for 2-years by StarTech.com, incl. free 24/5 North America based multi-lingual tech support

Product Type: USB Adapter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Red
Country Of Origin: Taiwan
Brand Name: StarTech.com
Form Factor: Plug-in Card
Length: 2" (50.80 mm)
Manufacturer: StarTech.com
Product Name: PCI Express USB Card
Manufacturer Part Number: PEXUSB321C
Manufacturer Website Address: http://www.startech.com
Packaged Quantity: 1
Platform Supported: Mac
Package Contents:

  • PCI Express USB Card
  • 1x Full Profile Bracket (Installed)
  • 1x Low Profile Bracket
  • 1x Quick-Start Guide

Limited Warranty: 2 Year
Weight (Approximate): 36.9 g
