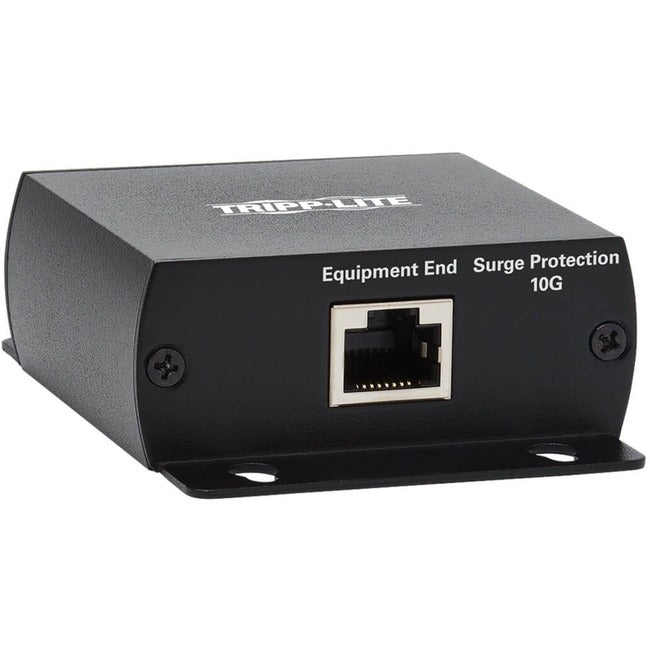

Tripp Lite by Eaton B110-SP-CAT Surge Suppressor/Protector

Tripp Lite by Eaton B110-SP-CAT Surge Suppressor/Protector

In-Line Surge Protector Keeps Your 10G Ethernet Network Equipment Safe

Ideal for home/corporate security systems, home theaters, trade shows and other digital signage applications, the B110-SP-CAT protects connected network equipment from damage caused by lightning, electrostatic discharge (ESD) and cable discharge events. Just connect it between your source and network device using Cat5/5e/6 cables, such as Tripp Lite's N001-Series snagless patch cables (sold separately). Note: two B110-SP-CAT surge protectors are required to protect both source and device.

Your Last Defense Against Intruding Voltage Spikes

Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Gas discharge modules on all four twisted pairs protect each wire from surges or spikes by dissipating the voltage transient through a contained plasma gas. The B110-SP-CAT meets the following IEC regulations: IEC 61000-4-2 (ESD) +/- 15kV (Air), +/- 8kV (Contact) and IEC 61000-4-5 (Lightning) 2kA (8/20µs), 6kV (8/20µs).

Ready to Use Right from the Package, So You Can Plug and Play Immediately

This in-line surge protector supports data transmission speeds up to 10 Gbps and 4K resolutions up to 3840 x 2160 at 60Hz (HDBaseT) without signal degradation. No software, drivers or external power supply is required. The compact metal housing is designed to endure in applications where static discharge is likely to occur. Mounting hardware is included for convenient installation where needed. Be sure the distance between the B110-SP-CAT and the equipment it is protecting is no more than 300 feet.

TAA-Compliant for GSA Schedule Purchases

The B110-SP-CAT is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

More from the Manufacturer

• Easy to connect between network source and device using standard Cat5/5e/6 cabling


• Rapid reaction time under 1 ns helps prevent damage from lightning/power surges


• Supports Ethernet network data transmission speeds up to 10 Gbps


• Plug-and-play operation with no software required for easy, immediate installation


• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases


• 2-year limited warranty

Product Type: Surge Suppressor/Protector
Environmentally Friendly: Yes
Power Cord/Cable Length: 1 ft
Taa Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country Of Origin: China
Brand Name: Tripp Lite by Eaton
Manufacturer: Tripp Lite by Eaton
Product Model: B110-SP-CAT
Product Name: B110-SP-CAT Surge Suppressor/Protector
Manufacturer Part Number: B110-SP-CAT
Manufacturer Website Address: https://tripplite.eaton.com/
Package Contents:

• B110-SP-CAT Surge Suppressor/Protector
• Grounding Wire, 1 ft.
• 4 x Mounting Screws
• 4 x Screw Anchors
• Grounding Wire Screw
• Quick Start Guide

Limited Warranty: 2 Year
Weight (Approximate): 130 g
