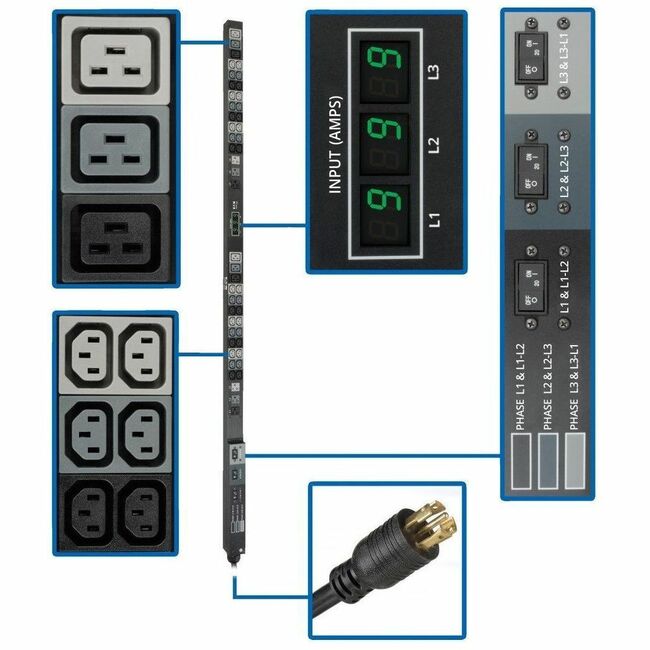

Tripp Lite by Eaton Metered PDU3MV6L2130 48-Outlets 8.6kW PDU

Tripp Lite by Eaton Metered PDU3MV6L2130 48-Outlets 8.6kW PDU

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

More from the Manufacturer

• TAA Compliant


• Toolless button-mount installation; cord retention brackets included


• 48 outlets total; 36 C13 (208V), 6 C19 (208V) & 6 NEMA 5-15/20R (120V)


• NEMA L21-30P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord


• Reports input current per-phase via built in current meters


• Metered 8.6kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount

Product Type: PDU
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Mounting Orientation: Vertical
Country Of Origin: Taiwan
Product Series: Metered
Brand Name: Tripp Lite by Eaton
Manufacturer: Tripp Lite by Eaton
Product Model: PDU3MV6L2130
Product Name: Metered PDU3MV6L2130 48-Outlets 8.6kW PDU
Mount Type: Rack-mountable
Manufacturer Part Number: PDU3MV6L2130
Manufacturer Website Address: https://tripplite.eaton.com/
Package Contents:

• Metered PDU3MV6L2130 48-Outlets 8.6kW PDU


• Cord Retention Brackets


• Rack Mounting Brackets


• Owner's Manual

Limited Warranty: 2 Year
Weight (Approximate): 6.30 kg
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
