Tripp Lite by Eaton Metered PDUMH20HV 10-Outlets PDU

Tripp Lite by Eaton Metered PDUMH20HV 10-Outlets PDU

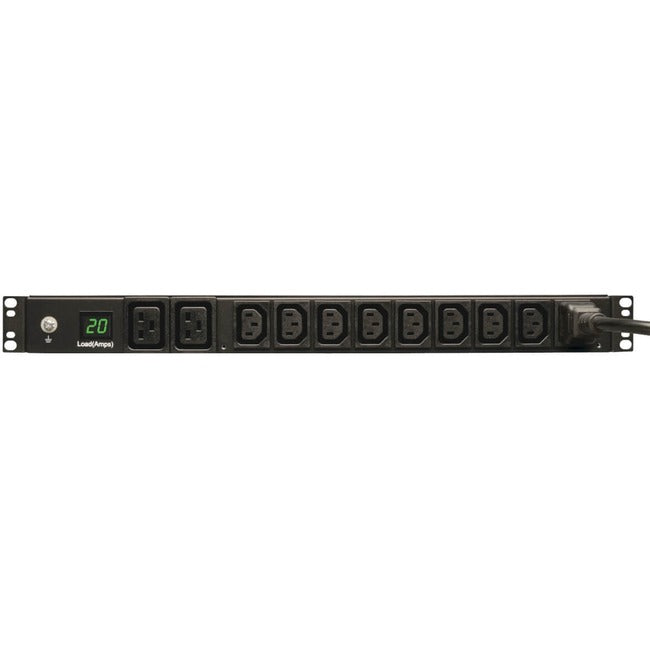

PDUMH20HV Metered, 1U rack PDU supports 20A maximum capacity at 208/240 & 230V (agency de-rated to 16 amps). Includes C20 inlet and detachable input cable with both C20 and L6-20P input plug options. 10 total output receptacles (8 C13 and 2 C19). Visual current meter tracks the output current of all outlets combined. Supports 1U rackmount installation in 19 inch 2 or 4 post racks. Included cord retention bracket keeps vital network equipment plugged in and continuously powered.

More from the Manufacturer

• 10 total outlets (8 C13, 2 C19)


• C20 input with L6-20P plug adapter; 12 ft. / 3.7m line cord


• 1U horizontal rackmount; Digital current meter


• Metered single phase 16/20A 200-240V PDU

Product Type: PDU
Environmentally Friendly: Yes
Taa Compliant: Yes
Mounting Orientation: Horizontal
Country Of Origin: Taiwan
Product Series: Metered
Rack Height: 1U
Brand Name: Tripp Lite by Eaton
Manufacturer: Tripp Lite by Eaton
Product Model: PDUMH20HV
Product Name: Metered PDUMH20HV 10-Outlets PDU
Mount Type: Rack-mountable
Manufacturer Part Number: PDUMH20HV
Manufacturer Website Address: https://tripplite.eaton.com/
Package Contents:

• Metered PDUMH20HV 10-Outlets PDU


• Rackmount Brackets


• Cord Retention Brackets

Limited Warranty: 2 Year
Weight (Approximate): 3.08 kg
