Tripp Lite by Eaton Metered PDUMV30HV2 48-Outlet PDU

Tripp Lite by Eaton Metered PDUMV30HV2 48-Outlet PDU

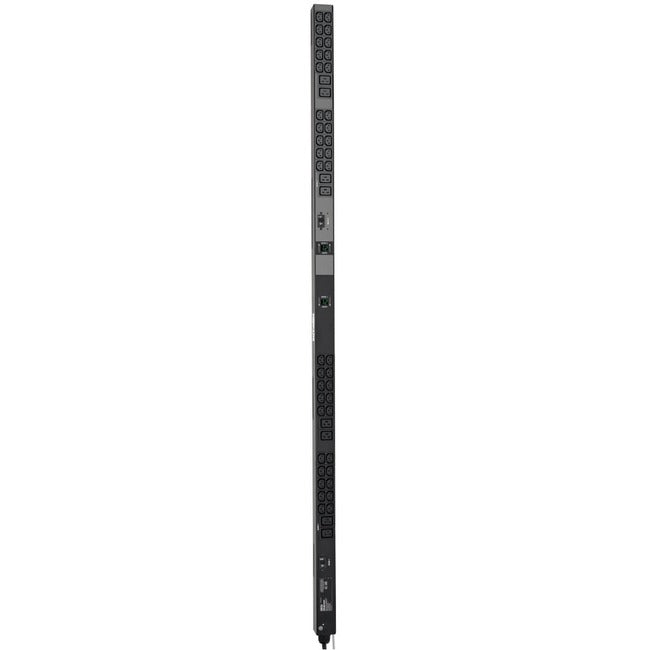

The 70-inch (178-centimeter) PDUMV30HV2 30A 208/240V 5.8kW Single-Phase Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment, including computers, routers, switches and servers.

Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification.

An ideal PDU for server rooms, network closets and data centers, the PDUMV30HV2's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The NEMA L6-30P input plug with 10-foot (3-meter) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground.

• Ideal for server rooms, network closets and data centers


• Dual load banks with 24 outlets each (4 C19 and 20 C13)


• Dedicated 20A circuit breakers protect output


• NEMA L6-30P input plug with 10-ft. (3 m) cord


• Ready for immediate toolless 0U installation

Product Type: PDU
Environmentally Friendly: Yes
Taa Compliant: Yes
Mounting Orientation: Vertical
Country Of Origin: Taiwan
Rack Height: 0U
Brand Name: Tripp Lite by Eaton
Manufacturer: Tripp Lite by Eaton
Product Model: PDUMV30HV2
Product Name: Metered PDUMV30HV2 48-Outlet PDU
Product Line: Metered
Manufacturer Part Number: PDUMV30HV2
Manufacturer Website Address: https://tripplite.eaton.com/
Package Contents:

• PDUMV30HV2 48-Outlet PDU
• Plug-lock inserts (8 C20, 40 C13)
• Spare installation buttons, 2.9mm/4.6 mm
• Ground screw
• Mounting hardware
• Owner's Manual

Limited Warranty: 2 Year
Weight (Approximate): 5.60 kg
