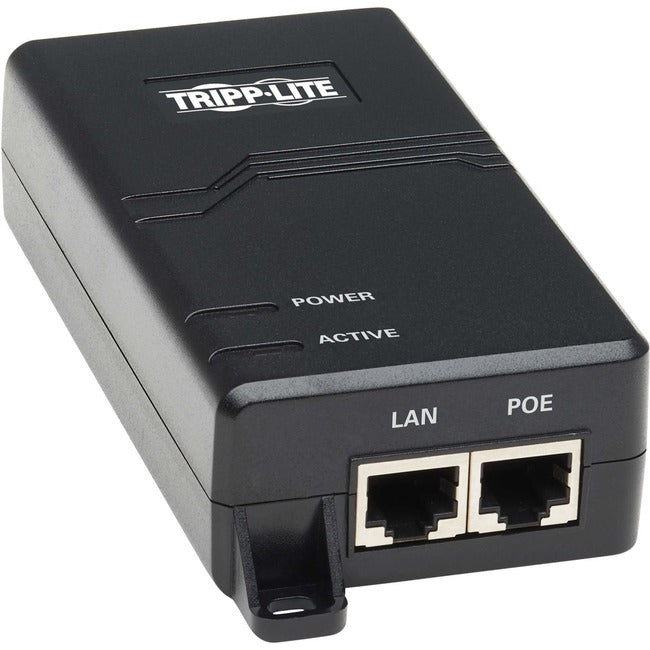

Tripp Lite by Eaton NPOE-30W-1G PoE Injector

Tripp Lite by Eaton NPOE-30W-1G PoE Injector

Adds PoE Devices to Your LAN Without a PoE Switch

Now you can add a surveillance camera, wireless access point, VoIP phone or other PoE (Power over Ethernet) device to your home or office network, even if your network switch doesn't support PoE. Instead of making an expensive upgrade to a PoE switch, you can use this single-port PoE+ injector to send 30 watts of power, as well as Gigabit Ethernet data, through your existing Cat5e/6/6a cabling.

Saves You Time and Money on Unnecessary Equipment Updates

This compact PoE plus injector delivers 10/100/1000 Mbps of data and up to 30 watts of power using existing Cat5e/6/6a cables. That means, in addition to not buying a new PoE network switch, you also don't need to install new AC power lines and electrical outlets. This cost-effective midspan injector sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor.

Expand Your Wireless Network Up to 328 ft.

The NPOE-30W-1G delivers both power and data to any IEEE 802.3at (PoE+) or IEEE 802.3af (PoE) device up to 100 meters (328 feet) away. This allows you to install a device in a building lobby, on a ceiling, inside a warehouse or anywhere else an AC power outlet is unavailable. The PoE+ injector supports full-duplex 2 Gbps communication for sending and receiving data simultaneously. It also protects your device against short circuits, overloads and power surges.

Simple Plug-and-Play Installation Has Your Device Connected in Minutes

No configuration or software is required to add the NPOE-30W-1G to your LAN. Just connect your switch or network jack to the shielded RJ45 Data port and your PoE device to the shielded RJ45 Power + Data port using existing Cat5e/6/6a cable. Connect the unit's C14 inlet to a NEMA 5-15R outlet using the included power cord. LEDs indicate the unit is receiving power and is ready to transmit data.

Designed for Installation Almost Anywhere

Mounting holes are featured for installing the midspan injector on a shelf, desktop, wall or any other smooth surface with user-supplied hardware. The black plastic housing fits in the palm of your hand, so it is small enough to hide away without interfering with your workflow or décor. The fanless design is ideal for silent operation.

3-Year Warranty and Environmentally Responsible Design

The NPOE-30W-1G comes with a 3-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

Product Type: PoE Injector
Environmentally Friendly: Yes
Product Color: Black
Color Family: Black
Country Of Origin: China
Certifications & Standards:

• CE
• FCC
• UL

IEEE Standards Supported

• 803.3
• 802.3ab
• 802.3af
• 802.3at
• 802.3u

Brand Name: Tripp Lite by Eaton
Form Factor: Desktop
Manufacturer: Tripp Lite by Eaton
Product Model: NPOE-30W-1G
Product Name: NPOE-30W-1G PoE Injector
Mount Type: Surface-mountable
Manufacturer Part Number: NPOE-30W-1G
Manufacturer Website Address: https://tripplite.eaton.com/
Package Contents:

• NPOE-30W-1G PoE Injector
• Detachable C13 to NEMA 5-15P power cord, 6 ft.
• Owner's manual
• Green Initiatives

Limited Warranty: 3 Year
