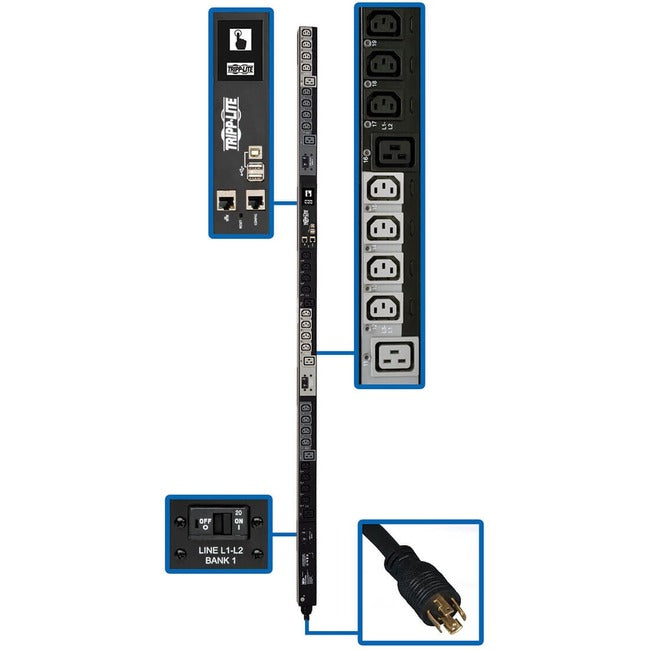

Tripp Lite by Eaton PDU3EVS6L2130 30-Outlet PDU

Tripp Lite by Eaton PDU3EVS6L2130 30-Outlet PDU
Features

3-Phase PDU Distributes, Monitors and Manages Network-Grade Power
Recommended for data centers, server rooms and network closets, this switched power distribution unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. You can more efficiently manage network power consumption and remotely reboot locked network items without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance, thus lowering the PDU's total cost of ownership.

30 Outlets Dispense AC Power to Connected Equipment
During normal operation, 30 individually controllable outlets-24 C13 and six C19-distribute AC power to rack equipment. Each 208/240V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets are split into three separately breakered load banks that can be individually monitored to ensure proper load levels and prevent downtime due to overload-related breaker trips. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Built-In LX Platform Network Management Card Allows Remote Access 24/7
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

Color Touchscreen LCD Offers Important Data at a Glance
An easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 208V 3-phase PDU via mobile device. If an EnviroSense2 module is connected to the Tripp Lite vertical PDU, the LCD also displays its status and environmental data, such as temperature and humidity.

Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with NEMA L21-30P 3- phase input connects the PDU to a compatible AC power source, generator or protected UPS.

TAA-Compliant for GSA Schedule Purchases
The PDU3EVS6L2130 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

2-Year Warranty
The PDU3EVS6L2130 is backed by a 2-year warranty, ensuring reliability and performance.

• 24 C13 and 6 C19 208/240V outlets distribute clean power to connected equipment


• Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access


• Remote power monitoring and control reduces on-site visits and maintenance costs


• 6 ft. cord with NEMA L21-30P 3-phase input connects to compatible AC source


• Color touchscreen LCD provides current levels, environmental data and network info


• Power a large data center with server racks running mission-critical applications


• Monitor power loads from various computers, switches, servers and other networking equipment in a retail or wholesale environment


• Maintain a major network installation in a government, commercial or industrial facility


• Manage multiple rack devices by rebooting or shutting down individual outlets as needed

Product Type: PDU
Environmentally Friendly: Yes
Taa Compliant: Yes
Mounting Orientation: Vertical
Country Of Origin: Taiwan
Rack Height: 0U
Brand Name: Tripp Lite by Eaton
Manufacturer: Tripp Lite by Eaton
Product Model: PDU3EVS6L2130
Product Name: PDU3EVS6L2130 30-Outlet PDU
Mount Type: Rack-mountable
Manufacturer Part Number: PDU3EVS6L2130
Manufacturer Website Address: https://tripplite.eaton.com/
Package Contents:

• PDU3EVS6L2130 30-Outlet PDU
• Built-in LX Platform Interface
• Configuration Cable
• 30 x Plug-Lock Insert Sleeves
• Rack-Mounting Hardware
• Spare Mounting Buttons
• Mounting Bracket Accessory
• Owner's Manual

Limited Warranty: 2 Year
Weight (Approximate): 7.62 kg
