Tripp Lite by Eaton PDUMNV30HV2LX 42-Outlet PDU

Tripp Lite by Eaton PDUMNV30HV2LX 42-Outlet PDU
The PDUMNV30HV2LX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

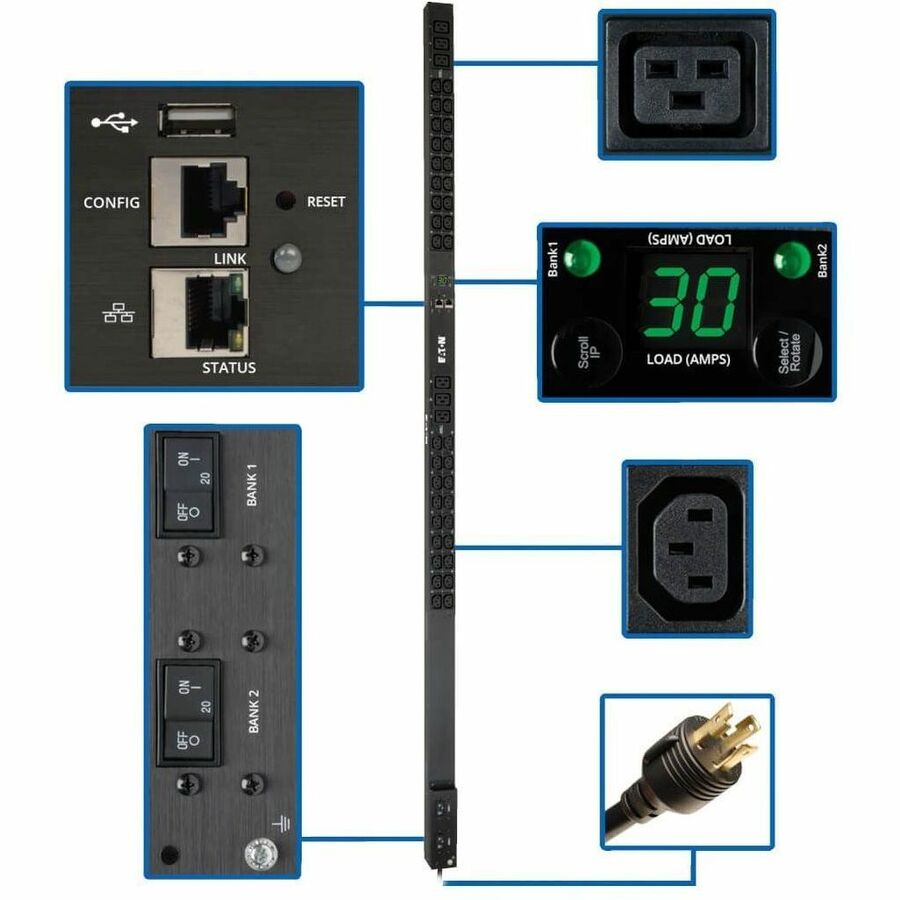

The 0U PDU features 42 outlets (36 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor each load bank's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

More from the Manufacturer

• PDU provides active metering enabling energy optimization and circuit protection


• With monitored PDU, you can remotely monitor single-or three-phase voltage easily

Product Type: PDU
Environmentally Friendly: Yes
Taa Compliant: Yes
Mounting Orientation: Vertical
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country Of Origin: Taiwan
Rack Height: 0U
Brand Name: Tripp Lite by Eaton
Manufacturer: Eaton Corporation
Product Model: PDUMNV30HV2LX
Product Name: PDUMNV30HV2LX 42-Outlet PDU
Mount Type: Rack-mountable
Manufacturer Part Number: PDUMNV30HV2LX
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Package Contents:

• PDUMNV30HV2LX 42-Outlet PDU
• Built-in LX Platform Interface
• Configuration Cable
• 42 x Plug-lock Insert Sleeves
• Rack-mounting Hardware
• Mounting Bracket Accessory
• Owner's Manual

Limited Warranty: 2 Year
Weight (Approximate): 15 lb (6803.89 g)
