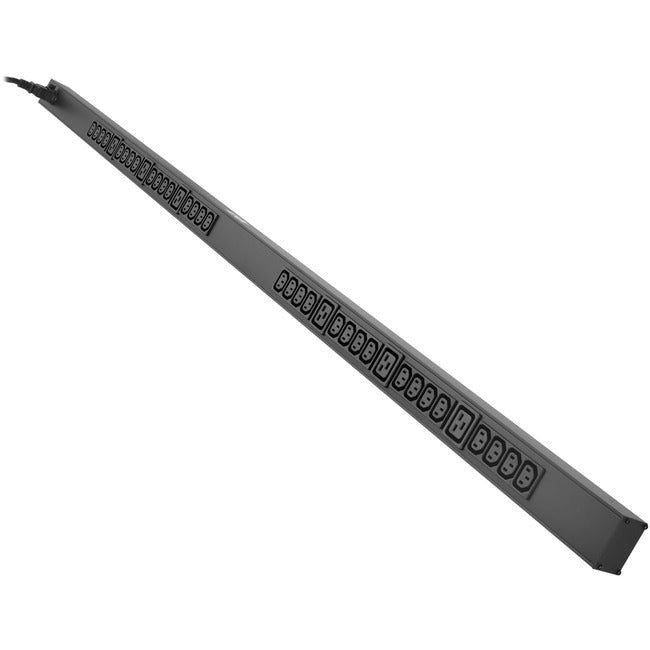

Tripp Lite by Eaton PDUV20HVL6-72 38-Outlets PDU

Tripp Lite by Eaton PDUV20HVL6-72 38-Outlets PDU

Single-Phase 208/240V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment. A 10-foot cord with NEMA L6-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown, which could lead to costly downtime.

Versatile Installation Options Give You Plenty of Choices

The 63.75-inch all-metal housing supports 0U vertical mounting in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Included C20 and C14 plug-lock inserts attach to the connected components' plugs to keep them connected and the devices continuously powered.

Typical Applications

Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

Package Includes

• PDUV20HVL6-72 3.3/3.8kW 208/240V Single-Phase Basic PDU
• (38) Plug-lock inserts
• Mounting hardware
• Owner's manual

• PDU distributes AC power to multiple servers and balances the load on the servers


• With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads

Product Type: PDU
Environmentally Friendly: Yes
Mounting Orientation: Vertical/Toolless
Placement: Under-counter
Country Of Origin: China
Cord Length: 10 ft
Rack Height: 0U
Brand Name: Tripp Lite by Eaton
Manufacturer: Tripp Lite by Eaton
Product Model: PDUV20HVL6-72
Product Name: PDUV20HVL6-72 38-Outlets PDU
Mount Type: Rack-mountable
Manufacturer Part Number: PDUV20HVL6-72
Manufacturer Website Address: https://tripplite.eaton.com/
Package Contents:

• PDUV20HVL6-72 38-Outlets PDU
• 38 x Plug-lock Inserts
• Mounting Hardware
• Owner's Manual

Limited Warranty: 5 Year
Weight (Approximate): 3.63 kg
