Tripp Lite by Eaton  |  SKU: SMART2500XLHG

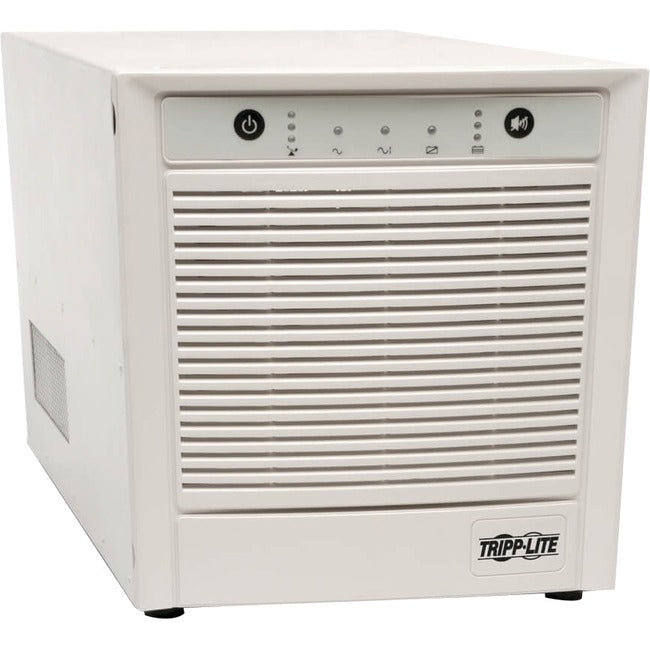

Tripp Lite by Eaton SMART 2500XLHG Medical Grade Tower UPS System

$2,675.99 CAD $4,538.90

Large orders for business

Unlock Volume Discounts on Larger Orders - Request a Quote Today!

Delivery and Shipping

Shop with Confidence: Order Processed and Tracking Info Provided within 1 Business Day

Have questions about this product? Don't hesitate to contact us at info@logicstechnology.com for fast help!

Tripp Lite by Eaton SMART 2500XLHG Medical Grade Tower UPS System

https://tripplite.eaton.com/

Tripp Lite by Eaton SMART 2500XLHG Medical Grade Tower UPS System
UL 60601-1 compliance is required for UPS systems within patient care areas. Get complete, compliant power protection with Tripp Lite's SMART2500XLHG SmartPro® Medical UPS System. The SMART2500XLHG provides a high load capacity 2200VA/1920W, full UL 60601-1 3rd edition compliance. Protects connected medical equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. It features a USB port, input locking clamp, equipotential earth bonding lug, 4 NEMA 5-15/20R outlets, and 4 IEC C13 outlets for universally adaptable outlet options. The SMART2500XLHG offers a complete power protection solution for clinical labs, diagnostic imaging, ophthalmology, medical equipment, imaging and other devices requiring medical grade protection. With built-in Faraday shielding, the SMART2500XLHG provides full line isolation and reduces the cumulative leakage current of connected equipment to less than 100 µA for optimal safety in patient care areas. Full isolation also provides continuous noise filtering and enhanced common mode surge suppression. Featuring advanced line-interactive operation, it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts and optional external battery packs (BP48V24-2U and BP48V60RT-3U) provide extended runtime tailored to your application. The SMART2500XLHG features a USB communication port that works with included PowerAlert software to provide UPS and site power monitoring plus automatic file saves and safe unattended shutdown of connected equipment in the event of a prolonged power failure.

Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART2500XLHG in this type of application will void the battery warranty

  • 2200VA Line interactive, extended run tower UPS

  • Battery backup for patient care area

  • UL 60601-1 listing 3rd edition

  • Built in Isolation transformer, reducing cumulative shock cumulative shock potential to less than 100 microamps

Product Type: Line-interactive UPS
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: China
Brand Name: Tripp Lite by Eaton
Form Factor: Tower
Manufacturer: Tripp Lite by Eaton
Product Model: SMART2500XLHG
Product Name: SMART 2500XLHG Medical Grade Tower UPS System
Product Line: SmartPro
Manufacturer Part Number: SMART2500XLHG
Manufacturer Website Address: https://tripplite.eaton.com/
Package Contents:


  • SMART 2500XLHG Medical Grade Tower UPS System

  • Poweralert Software CD

  • Warranty Information

  • Instruction Manual

  • USB Cable

  • DB9 Cable


Limited Warranty: 2 Year
Software Included: PowerAlert Software
Weight (Approximate): 33.25 kg
