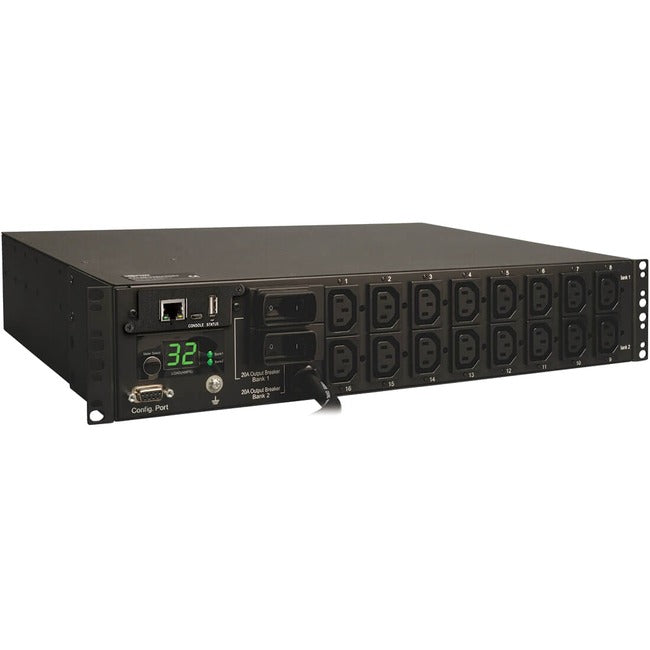

Tripp Lite by Eaton Switched PDUMH32HVNET 16-Outlets 7.4kW PDU

Tripp Lite by Eaton Switched PDUMH32HVNET 16-Outlets 7.4kW PDU

Tripp Lite Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is displayed locally via front panel current meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

• TAA Compliant


• 2-year limited warranty


• Temperature, humidity and contact closure options


• 16 C13 switched outlets with plug-lock cable retention inserts


• Blue 230V IEC-309 32A (2P+E) input cable


• Visual current meter; Reversible housing


• LX Platform interface reports voltage, frequency & loading information


• Switched 32A 7.4kW 230V PDU; 2U horizontal rackmount

Product Type: PDU
Environmentally Friendly: Yes
Taa Compliant: Yes
Mounting Orientation: Horizontal
Country Of Origin: Taiwan
Product Series: Switched
Rack Height: 2U
Brand Name: Tripp Lite by Eaton
Manufacturer: Tripp Lite by Eaton
Product Model: PDUMH32HVNET
Product Name: Switched PDUMH32HVNET 16-Outlets 7.4kW PDU
Mount Type: Rack-mountable
Manufacturer Part Number: PDUMH32HVNET
Manufacturer Website Address: https://tripplite.eaton.com/
Package Contents:

• Switched PDUMH32HVNET 16-Outlets 7.4kW PDU
• Rack Installation Brackets
• Cable Retention Ties
• SNMPWEBCARD Configuration Cable
• PowerAlert Software Kit
• User Manual

Limited Warranty: 2 Year
Weight (Approximate): 6.21 kg
