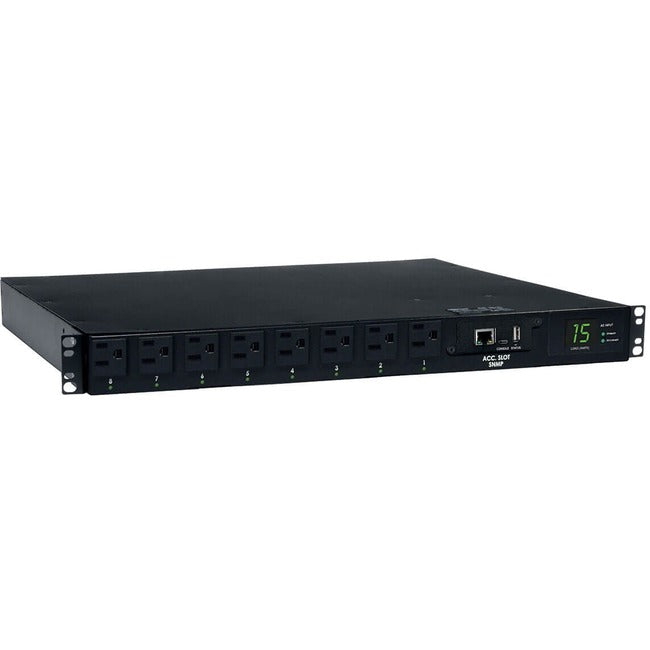

Tripp Lite PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet

Tripp Lite PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet
Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. The built-in Java-free HTML5-based LX Platform interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP. Switched PDU features include individually controllable output receptacles. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.

More from the Manufacturer

• Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases


• Individually switched outlets; Two digit visual current meter


• 1U horizontal rackmount; 2 NEMA 5-15P inputs; 8 NEMA 5-15R outlets


• Separate primary & secondary inputs connect to any two compatible power sources


• Enables redundant A/B power option for single-corded network devices


• Built-in Java-free LX Platform interface for 24/7 remote access


• Single phase 15A 120V Auto Transfer Switch / ATS PDU

Product Type: PDU
Environmentally Friendly: Yes
Taa Compliant: Yes
Mounting Orientation: Vertical
Product Color: Black
Country Of Origin: Taiwan
Rack Height: 1U
Brand Name: Tripp Lite by Eaton
Manufacturer: Tripp Lite by Eaton
Product Model: PDUMH15ATNET
Product Name: PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet
Mount Type: Rack-mountable
Manufacturer Part Number: PDUMH15ATNET
Manufacturer Website Address: https://tripplite.eaton.com/
Package Contents:

• PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet


• PDU with attached 5-15P input power cord


• Detachable C13 to NEMA 5-15P 12 ft/3.6m power cord for optional secondary input


• User manuals with warranty information

Limited Warranty: 2 Year
Weight (Approximate): 4.99 kg
