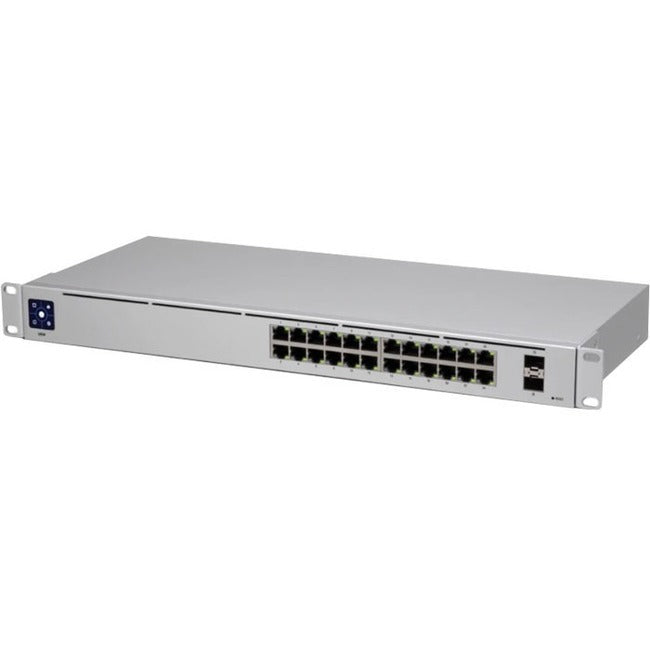

Ubiquiti UniFi Switch 24

Ubiquiti UniFi Switch 24

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Application with UniFi Network mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Features:

• (24) Gigabit Ethernet Ports
• (2) Gigabit SFP Ports
• 1.3" color touchscreen for status information
• Managed by UniFi Network Application
• 1U rackmountable (kit included)

Managed by UniFi Network Application version: 5.12.32 or higher

• Cascade to other network devices through the uplink port to expand your local area network
• Quickly and easily set up a wired network with 24 networking ports
• Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
• Management capability provides control over setup and configuration of your network
• Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Compatible Rack Unit: 1U
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Brand Name: Ubiquiti
Form Factor: Rack-mountable
Manufacturer: Ubiquiti Inc.
Product Model: USW-24
Product Name: UniFi Switch 24
Product Line: UniFi
Manufacturer Part Number: USW-24
Manufacturer Website Address: http://www.ui.com
Package Contents:

• UniFi Switch 24
• Rackmount Kit

Limited Warranty: 1 Year
Weight (Approximate): 5.95 lb (2700 g)
Feature1: Cascade to other network devices through the uplink port to expand your local area network
Feature2: Quickly and easily set up a wired network with 24 networking ports
Feature3: Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Feature4: Management capability provides control over setup and configuration of your network
Feature5: Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
